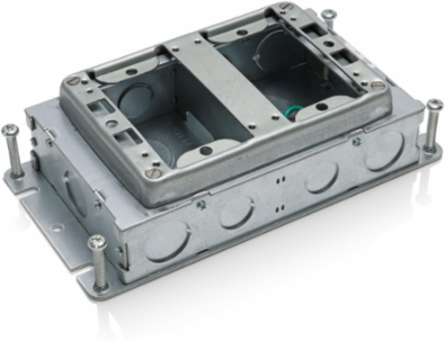

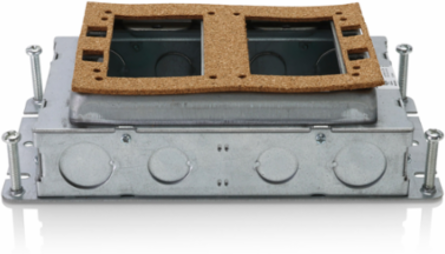

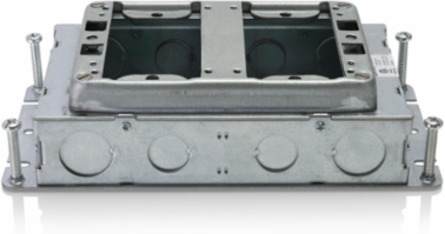

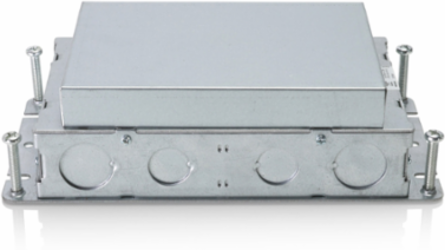

Leviton FBHR2-2 Concrete Floor Box, 2-Gang, Shallow
- MPN: FBHR2-2
- UPC: 078477985373
- PPN: LEV-FBHR2-2
CAD
$91.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
2-Gang Shallow Rectangle Stamped Steel Floor Box for Concrete Installing, Includes 4 Leveling Screws and Gasket for Tile Frame Installation
Features
- Flush to the floor - once floor box is buried and cured, the tile ring and plates can be installed flush to the finished floor
- Height adjustable - floor box includes screws to height-adjust for thicker concrete slab floors
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Material Specifications
- Body Material
- Steel
- Grounding Screw
- Steel
Cover MaterialSteel
Mechanical Specifications
- Conduit Feeds
- Sides, Ends, Bottom
- Cubic Inch Capacity
- 59
- Minimum Depth Of Pour
- 2.30 inch
Conduit SelectionSides: Four 1/2 inch, 3/4 inch trade size K.O, Ends: Two 3/4 inch trade size K.O., Bottom: Two 1 inch, 1-1/4 inch trade size K.O.
Dimensions9.2 inch x 4.8 inch x 2.3inch
Wire GaugeTwo Pre-Installed 14 AWG ground wire, 6 inch length
Product Features
- Color
- Steel
- Feature
- 1-3/8 inch pre pour adjustment, 1/2 inch post pour adjustment
- Gasket
- Cork
- Type
- Concrete
Device TypeFlush Concrete Floor Box
FunctionCan be used with all types of flooring including wood, tile, terrazzo, carpet, and concrete
Receptacle CompatibilityAny standard duplex receptacle
Warranty
- Warranty
- 2-Year Limited
