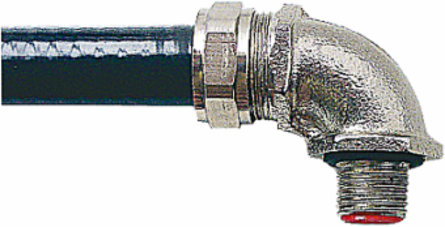

Adaptaflex SP20/M20/C90 Conduit Fitting with Metric Threads

MPN: SP20/M20/C90
UPC: 786210249032
PPN: T-B-SP20/M20/C90

$100.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

90 Degree Conduit Fitting and Elbow with Male External Thread, Nominal Conduit Size 20 Millimeters, Metric Thread Size M20, Hot Dipped Galvanised Brass

Specifications

European Specifications (ETIM)

ETIM	EC001180 Screw connection for protective metallic hose
Degree of protection (IP) conduit dependant	IP65-IP65
Revolving thread	N
Connection type screw connection to housing	Thread
Thread connection size	M20 x 1.5
Material housing	Brass
Thread length	12.5mm
Approved in combination with protective conduit CSA	N
Approved in combination with protective conduit FI	N

Nominal diameter	20mm
Model	90°-elbow
Construction type	External thread
Thread type	Metric
One-piece	Y
Surface protection	Other
Approved in combination with protective conduit DIN EN 61386-23	N
Approved in combination with protective conduit UL	N
Operating temperature	-50-+300°C

North American Specifications (UNSPSC)

UNSPSC	39121311 Electrical fittings
Brand Name	Adaptaflex
Application	For Insertion into Threaded Entries or Knockout to Connect Conduit
Material	Brass
Color	Metallic
Cable Entry	M20 Thread
