Adaptaflex SP25/M25/C90 Conduit Fitting with Metric Threads
- MPN: SP25/M25/C90
- UPC: 786210259291
- PPN: T-B-SP25/M25/C90
CAD
$144.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

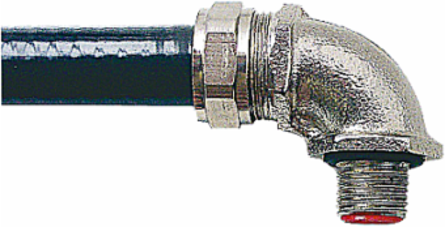

90 Degree Conduit Fitting and Elbow with Male External Thread, Nominal Conduit Size 25 Millimeters, Metric Thread Size M25, Hot Dipped Galvanised Brass
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP65-IP65
- Revolving thread
- N
- Connection type screw connection to housing
- Thread
- Thread connection size
- M25 x 1.5
- Material housing
- Brass
- Thread length
- 13.5mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter25mm
Model90°-elbow
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionOther
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULN
Operating temperature-50-+300°C
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M25 Thread
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
Size3/4 Inch
FinishHot-Dip Galvanised
Connection90 Degree
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.53 lbs. Each
Outer Dimensions (inches)1x1x1
