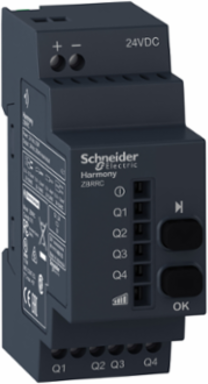

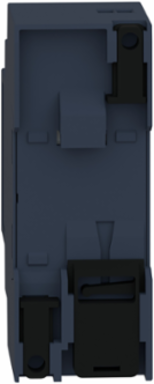

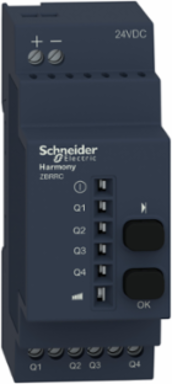

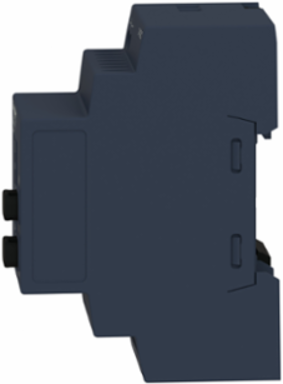

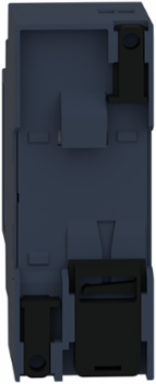

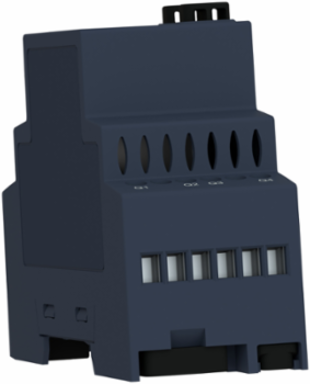

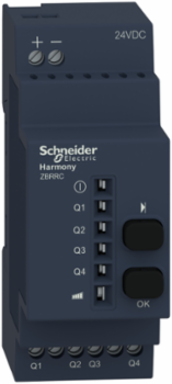

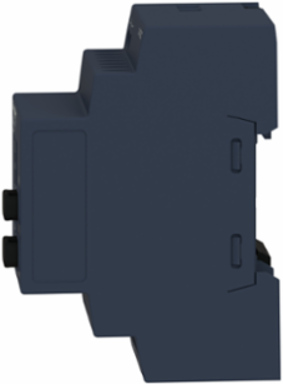

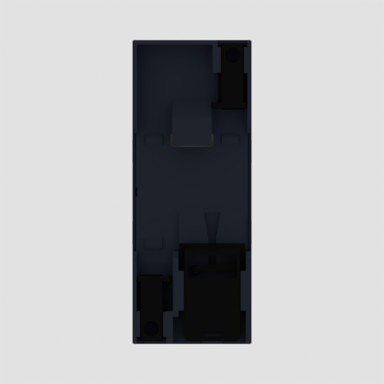

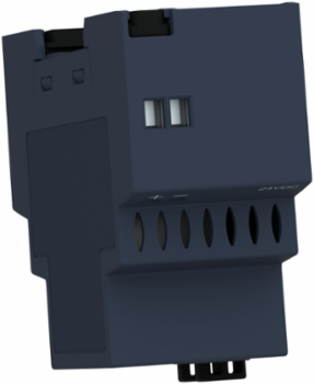

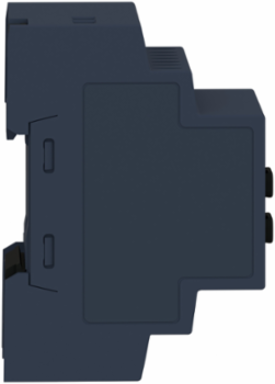

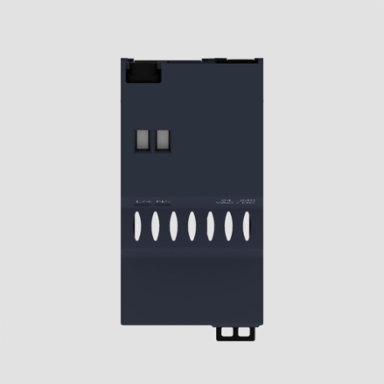

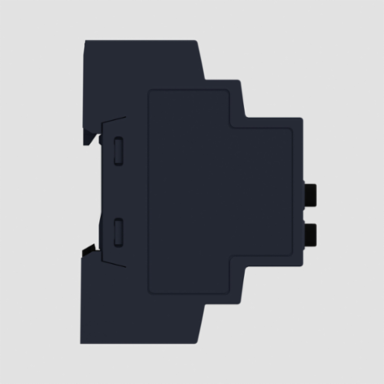

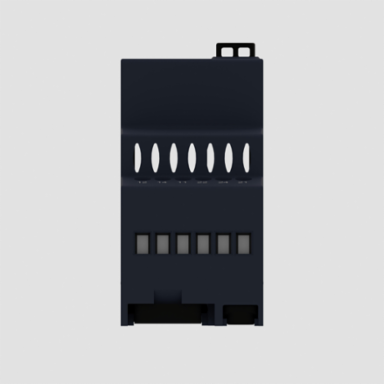

Schneider Electric ZBRRC Harmony XB5R Programmable Receiver, 4 PNP, IP20, 24V DC, Monostable

  • MPN: ZBRRC
  • PPN: SCH-ZBRRC
  • UNSPSC: 39122216
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $284.75

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

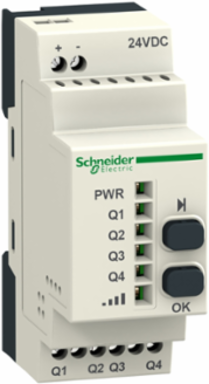

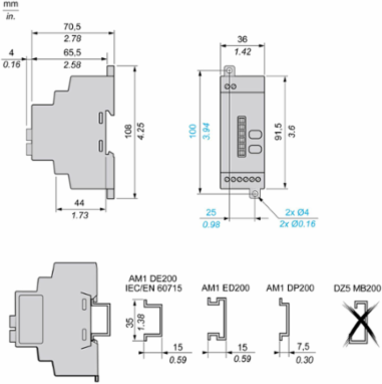

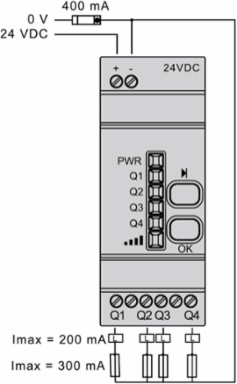

    This configurable receiver is part of the ranges Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It is equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It features 4 PNP outputs, 200 mA /24 V and it can be supplied with 24V DC. It is easily combined with wireless and batteryless pushbuttons XB4R/XB5R and limit switches XCKW/XCMW. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. Its protection index is IP20. It weighs 130g and its dimensions are, 36mm wide, 108mm high, 75mm deep.

    Features

    • Quick and easy assembly and disassembly
    • Robustness to withstand harsh environments
    • With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
    • A wide choice of contact blocks for general purposes or specific applications (low current, standard)
    • Excellent mechanical connection with operator head
    • A large set of accessories to customize your panels

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginIndonesia, United States
    Depth75 mm
    Weight122 g

    Complementary Attributes

    Maximum Voltage Drop<2 V DC 2 A, <2 V DC 2 A, <2 V DC 2 A<2 V DC 2 A, <2 V DC 2 A, <2 V DC 2 A
    Maximum Sensing Distance100 m in free field25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure
    Minimum Switching Current10 mA 5 V DC
    Us Rated Supply Voltage24 V, 24 V DC - 15...20 %
    Maximum Switching Current0.2 mA DC
    Ui Rated Insulation Voltage60 V IEC 60664-1

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Electrical Connection2 conductors cable 0.14-1.5 mm² - 26 AWG...16 AWG - flexible - with cable end IEC 60947-1, 1 conductor cable 0.14-2.5 mm² - 26 AWG...14 AWG - solid - without cable end IEC 60947-12 conductors cable 0.14-1.5 mm² - 26 AWG...16 AWG - solid - without cable end IEC 60947-1, 1 conductor cable 0.14-4 mm² - 26 AWG...12 AWG - flexible - with cable end IEC 60947-1
    Response Time< 30 ms after transmitter clicks, < 30 ms after transmitter clicks< 30 ms after transmitter clicks, < 30 ms after transmitter clicks
    Certificate AgencyCCC, CSA, GOST, C-tick, UL
    Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0609290773
    Carbon Footprint Of The Manufacturing Phase A1 To A31 kg CO2 eq., 1.1147221333
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Antenna Typeomnidirectional
    Function Of Modulemonostable
    Level Or Class5M00G7W
    Modulation TechniqueO-QPSK
    Operating Positionany position without derating
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Specific Applicationinterface to PLC
    Reset Time2 ms time delay
    Shock Resistance10 gn 16 ms) 6000 shocks IEC 60068-2-27
    Status Led1 LED Green power ON1 LED green and yellow reception signal4 LEDs Green relay ON
    Tightening Torque0.6 N.m
    Total Lifecycle Carbon Footprint32 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Data Sourceextrapolated product
    Width Nominal36 mm
    Customs Code8538908180
    Warranty In Months18
    Reference Lifetime In Y10
    Recyclability Potential In %2
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Insulation Resistance> 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030> 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030
    Vibration Resistance+/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-62 gn (f= 8-150 Hz) conforming to IEC 60068-2-6
    Carbon Footprint Of The Distribution Phase A40.019248672, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0032551552, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B631 kg CO2 eq., 31.0418797733
    Local Publishable Date2026-08-06
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2303007EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1902
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Antenna Gain0 dBi
    Device Short NameZBRRC
    Housing Materialpolycarbonate
    MarkingCE
    Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
    Overvoltage CategoryIII conforming to IEC 60664-1
    Product Or Component Typeprogrammable receiver
    Range Of ProductHarmony
    ReturnabilityYes
    Software VersionEIME v5.8.1
    Sustainable PackagingNo
    Time Delay Range0.5 s - 15...15 %)
    Transmission Frequency2405 MHz
    Database Version2016-11
    Height Nominal108 mm
    Nbr. Of Units In Pkg.1
    Short Circuit Protection0.4 A fuse fast blow
    Functional Unit DescriptionThe ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
    Energy Consumption On Product Lifetime In Kwh52.5746

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2303007EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2020-11-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint32.2400348112
    Environmental DisclosureENVPEP2303007EN
    Ip Degree Of ProtectionIP20 terminals)
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2303007EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typeprogrammable receiver
    Range Of ProductHarmony

    ETIM

    ETIM 8EC002024
    ETIM 10EC002024
    ETIM 9EC002024

    Output Attributes

    Output Contacts4 PNP
    Output Typetransistor PNP

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
