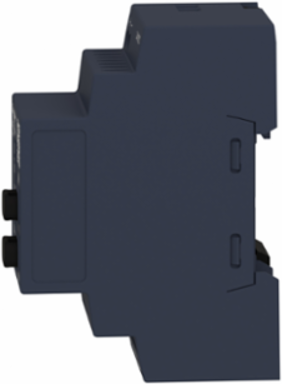

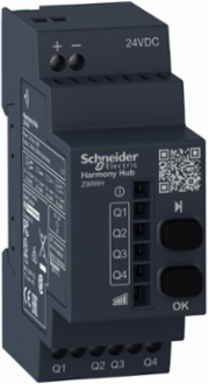

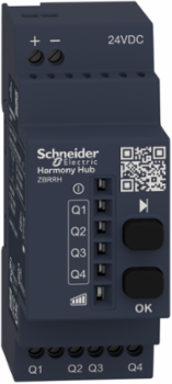

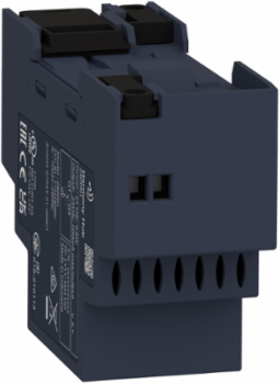

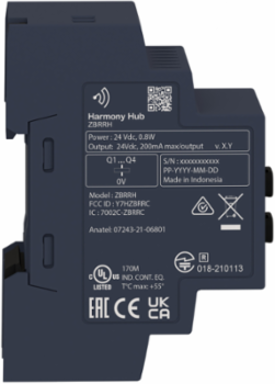

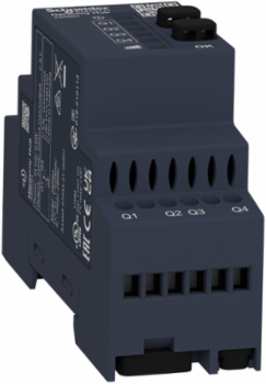

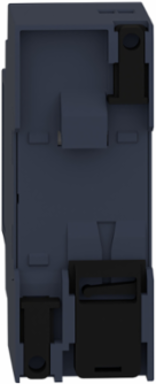

Schneider Electric ZBRRH Wireless Receiver Harmony XB5R 4 PNP Outputs 100 m Range 24V DC

MPN: ZBRRH
PPN: SCH-ZBRRH

$284.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric ZBRRH Harmony XB5R Wireless Receiver is a versatile solution designed for seamless integration in automation and control applications. Featuring four PNP outputs with a robust current capacity of 200mA at 24V DC, this receiver ensures reliable performance in various setups. Rated with an IP20 protection level, it is well-suited for environments where safety and connectivity are paramount. This device not only enhances operational efficiency but also simplifies installation, making it an essential accessory for modern safety switches and pilot devices.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, France, Indonesia

Depth	75 mm

Communications & Management Attributes

Communication Port Protocol	Zigbee green power 2.4 GHz IEEE 802.15.4

Complementary Attributes

Maximum Voltage Drop	<2 V DC 2 A, <2 V DC 2 A, <2 V DC 2 A<2 V DC 2 A, <2 V DC 2 A, <2 V DC 2 A
Maximum Power Consumption In W	20 W DC
Maximum Switching Current	0.2 mA DC

Maximum Power Consumption In Va	20 VA DC
Maximum Sensing Distance	100 m in free field25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Minimum Switching Current	10 mA 5 V DC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	2 conductors cable 0.14-1.5 mm² - 26 AWG...16 AWG - flexible - with cable end IEC 60947-1, 1 conductor cable 0.14-2.5 mm² - 26 AWG...14 AWG - solid - without cable end IEC 60947-12 conductors cable 0.14-1.5 mm² - 26 AWG...16 AWG - solid - without cable end IEC 60947-1, 1 conductor cable 0.14-4 mm² - 26 AWG...12 AWG - flexible - with cable end IEC 60947-1
Insulation Resistance	> 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030> 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030
Radio Agreement	RSS, SRRC, ANATEL, ARIB T66, FCC, ICASA
Vibration Resistance	+/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-62 gn (f= 8-150 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase [A4]	0.018617568, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0031484288, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1103010EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1942
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Antenna Gain	0 dBi
Channels Utilisation	1 Harmony Hub per receiver
Function Of Module	bi-stable
Level Or Class	5M00G7W
Max Power Consumption In W	1 mW
Number Of Channels	1
Overvoltage Category	III conforming to IEC 60664-1
Product Or Component Type	wireless receiver
Range Of Product	Harmony
Returnability	Yes
Software Version	EIME v5.8.1
Sustainable Packaging	Yes
Time Delay Range	0.5 s - 15...15 %)
Transmission Frequency	2405 MHz
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	The ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
Energy Model - Manufacturing [A1-a3]	Energy model used: France
Energy Model - Use [B6]	Electricity Mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	12
Width Nominal	36 mm
[Uimp] Rated Impulse Withstand Voltage	0.8 kV
Rated Short-duration Power Frequency Withstand Voltage	1 kV 50 Hz IEC 60947-5-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109170

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electromagnetic Compatibility	immunity for industrial environments conforming to IEC 61000-6-2, conducted and radiated emissions class B conforming to CISPR 22electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4, conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6radiated emission conforming to ETSI EN 300 440-1conducted emission conforming to EN 300-489-1, conducted emission conforming to ETSI EN 300 489-3, radiated emission conforming to ETSI EN 300 440-2electrical fast transient/burst immunity test - test level: 1 kV (PNP output wires) conforming to IEC 61000-4-41.2/50 µs shock waves immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5, immunity to microbreaks and voltage drops - test level: 7 ms conforming to IEC 61000-4-11

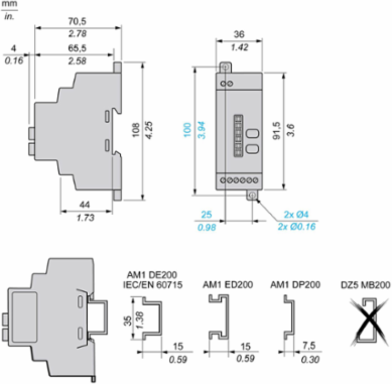

Mounting Support	35 mm symmetrical DIN rail conforming to IEC 60715, mounting plate
Response Time	< 30 ms after transmitter clicks, < 30 ms after transmitter clicks< 30 ms after transmitter clicks, < 30 ms after transmitter clicks
Certificate Agency	CCC, CSA, GOST, C-tick, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.0589314027
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.0781738667
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Antenna Type	omnidirectional
Device Short Name	ZBRRH
Housing Material	polycarbonate
Marking	CE
Modulation Technique	O-QPSK
Operating Position	any position without derating
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	interface to Harmony hub
Reset Time	2 ms time delay
Shock Resistance	10 gn 16 ms) 6000 shocks IEC 60068-2-27
Status Led	1 LED Green power ON1 LED green and yellow reception signal4 LEDs Green relay ON
Tightening Torque	0.5-1 N.m IEC 60947-1
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Utilisation Category	DC-13 IEC 60947-5-1
Pep Code	ENVPEP101106EN
Pep Verification Date	2020-11-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; AC; <lt/> 1kV; EU-27
Height Nominal	108 mm
[Ui] Rated Insulation Voltage	60 V IEC 60664-1
[Us] Rated Supply Voltage	24 V DC - 15...20 %

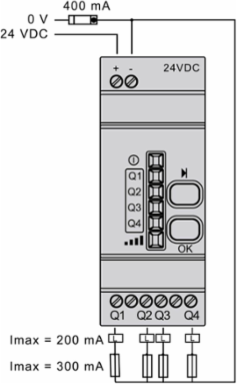

Short-circuit Protection	0.4 A fuse fast blow
Package Weight(Lbs)	118.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1.1588712661
Environmental Disclosure	ENVPEP101106EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP101106EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ip Degree Of Protection	IP20 IEC 60529 casing), IP20 terminals)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1103010EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Relative Humidity	90-90 % -20-55 °C, without condensation ETSI EN 300 440-1
Pep Verification Date	2020-11-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
