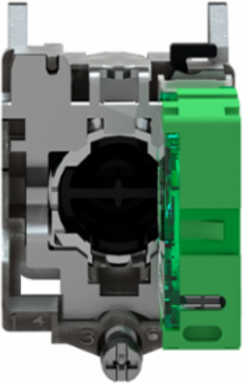

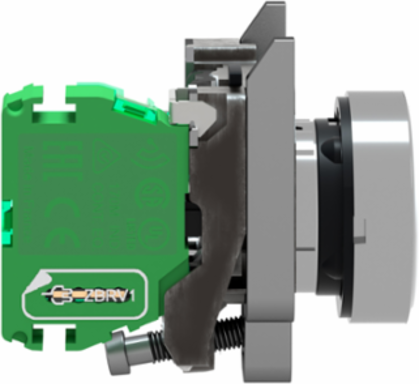

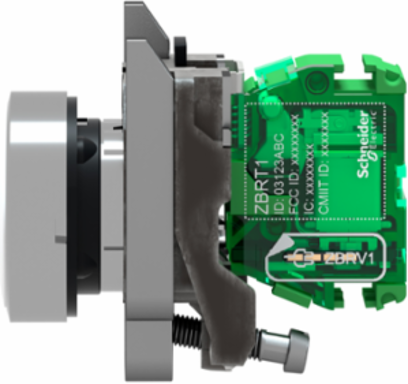

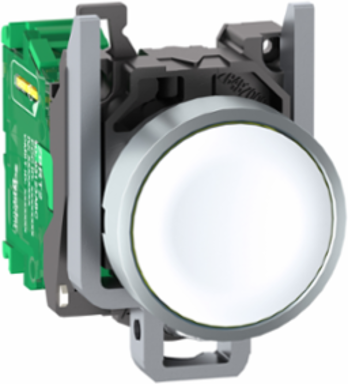

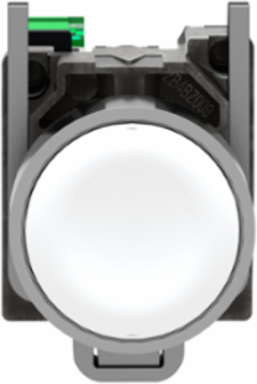

Schneider Electric ZB4RTA1 Harmony XB5R Wireless Push Button Transmitter, 22mm, Metal, IP66
- MPN: ZB4RTA1
- PPN: SCH-ZB4RTA1
CAD
$121.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This device is a flush-mounted, wireless, and batteryless metal pushbutton (diameter 22mm). It is equipped with a white cap. The reference ZB4RTA1 includes a transmitter equipped with a fixing collar and a spring return pushbutton head with an attached cap. The cap is factory-assembled and cannot be removed. The transmitter and the receiver communicate via 2.4GHz radio transmission (free worldwide band) Zigbee Green Power. The maximum sensing distance between the transmitter and the receiver in a free field is up to 100m. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IK03, IP66, IP67, IP69 and IP69K rating. This pushbutton head is ideal for situations where quick actions are required for a process or machine to function correctly. The wireless and battery-less interfaces are used for building utilities (automatic doors, lighting, etc.) and industrial applications (conveying systems, automotive, MMM, logistics, food and beverage). It complies with various radio agreements such as ANATEL, ARIB T66, FCC, ICASA, and RSS, as well as the standards of CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, and UL 508. The Harmony XB5R range of wireless and battery-less interfaces suits various building utilities and industrial applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France |
|---|
Communications & Management Attributes
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
|---|
Physical Attributes
| Cad Overall Depth | 43 mm |
|---|---|
| Cad Overall Width | 30 mm |
| Cad Overall Height | 41.5 mm |
|---|---|
| Embedding Depth | 42 mm |
Complementary Attributes
| Maximum Sensing Distance | 100 m in free field25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 0, no |
| Shock Resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Operator Profile 1 Cap Operator Or Lens Color | white |
| Carbon Footprint Of The Distribution Phase [A4] | 0.014515392, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0024547072, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 31 kg CO2 eq., 31.0418797733 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1103010EN |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Antenna Type | omnidirectional |
| Device Short Name | XB5R |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3 |
| Fixing Collar Material | zamak |
| Level Or Class | 5M00G7W |
| Mechanical Durability | 1000000 cycles |
| Modulation Technique | O-QPSK |
| Number Of Channels | 16 |
| Operating Travel | 4.3 mm total travel) |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Repair Index | A |
| Range Of Product | Harmony XB5 |
| Returnability | Yes |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 32 kg CO2 eq. |
| Type Of Operator | spring return push-button with transmitter |
| Pep Code | ENVPEP101106EN |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: France |
| Energy Model - Use [B6] | Electricity Mix; AC; < 1kV; EU-27 |
| Nbr. Of Units In Pkg. | 1 |
| Product Repair Index - Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Radio Agreement | ANATEL, ARIB T66, FCC, ICASA, RSS |
| Vibration Resistance | +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-65 gn (f= 11-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6 |
| Certificate Agency | CSA, UL, BT 2006/95/EC, GOST, C-tick |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0459465173 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.8 kg CO2 eq., 0.8406101333 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Antenna Gain | 0 dBi |
| Bezel Material | chromium plated metal |
| Electrical Composition Code | PW1 |
| Emission Power | 3 mW |
| Fixing Mode | fixing screw beneath head 0.8-1.2 N.m |
| Max Power Consumption In W | 1 mW |
| Mechanical Robustness | free fall resistance 1000 mm IEC 60068-2-32 |
| Mounting Diameter | 22 mm |
| Operating Force | 10 N C/O changing electrical state |
| Operator Profile | white flush |
| Product Or Component Type | wireless and batteryless transmitter |
| Protective Treatment | TH |
| Response Time | < 2 ms< 2 ms |
| Shape Of Signaling Unit Head | round |
| Sustainable Packaging | Yes |
| Transmission Frequency | 2405 MHz |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years. |
| Energy Consumption On Product Lifetime In Kwh | 52.5746 |
| Energy Model - Installation [A5] | Electricity Mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; AC; < 1kV; EU-27 |
| Package Weight(Lbs) | 93.000 g |
| Take-back | No |
| Customs Code | 8517620090 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Directives | 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 31.9454065232 |
| Environmental Disclosure | ENVPEP101106EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP101106EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529 front face), IP67 IEC 60529 front face), IP69 IEC 60529 front face), IP69K IEC 60529 front face) |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1103010EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 95-95 % -40-70 °C without condensation |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | wireless and batteryless transmitter |
|---|
| Range Of Product | Harmony XB5 |
|---|
ETIM
| ETIM 8 | EC001028 |
|---|
| ETIM 9 | EC001028 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
