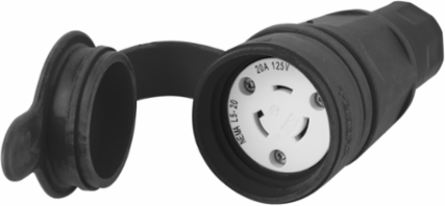

Hubbell Wiring Device-Kellems HBL27W47BK Watertight Twist-Lock Connector, 20A 125V, 2-Pole, 3-Wire, Black
- MPN: HBL27W47BK
- UPC: 783585131474
- PPN: HBL-HBL27W47BK
- UNSPSC: 39121421
CAD
$97.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Twist-Lock® Connector, 20A, 125V, 2-Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-20R
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Specifications
Additional
- Amperage
- 20 A
- Number of Poles
- 2-Pole
- Temperature Range
- -40 C to +60 C
- NEMA Rating
- L5-20R
- Dimensions
- 2.51 in x 2.51 in x 5.69 in
- Contact Material
- Nickel Plated Brass
- Compliance
- UL Listed, CSA Certified, IP69K
- Country of Origin
- US
Voltage125 V
Number of Wires3-Wire
Temperature Rise30 C max
Cord Diameter0.325-0.750 in
MaterialThermoplastic Elastomer
Hardware MaterialStainless Steel
StandardsMeets NEMA WD-1, WD-6 and ANSI Standards
ColorBlack
