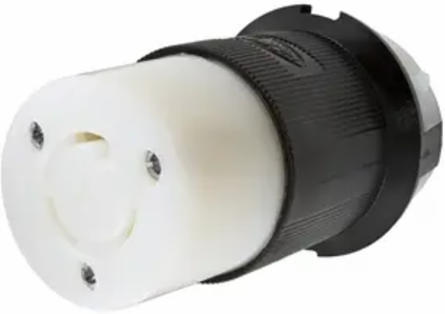

Hubbell Wiring Device-Kellems HBL2313 Twist-Lock® Female Connector, 20A 125V, NEMA L5-20R, 3-Wire, Black and White
Hubbell Wiring Device-Kellems HBL2313 Twist-Lock® Female Connector, 20A 125V, NEMA L5-20R, 3-Wire, Black and White
- MPN: HBL2313
- UPC: 783585037745
- PPN: HBL-HBL2313
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$47.63/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Black and White Nylon.
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL2313 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Education Application Guide
- Country of Origin
- United States
- Dimensions
- 2.26 in x 2.26 in x 3.86 in
- Horsepower - Maximum
- 1
- Length
- 2.26 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L5-20R
- Size
- 2.26 in x 2.26 in x 3.86 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Type
- Connector Body
- Voltage Rating Description
- 125 VAC
- Width
- 2.26 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L5-20R
- Number Of Wires
- 3-Wire
- Wire Size
- #16 AWG to #8 AWG
- Description - Invoice
- LKG CONN, 20A 125V, L5-20R, B/W
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Cord Range
- 0.360"-0.930" (9-24)
- Cord Diameter
- 0.360-0.930 in
- Material
- Nylon
- BOX SIZE
- 7.900x12.500x8.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585037745
- Case Weight
- 11.650 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 48.000 in
- Pallet Weight
- 1113.600 lb.
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextHealthcare Application Guide
Current / Amperage Rating20 A
Height3.86 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
ColorNoir, blanc
InsulationInsulated Body
Number of Poles2-Pole
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating125 VAC
Weight0.30 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2313
Cable Range0.360 - 0.930 in
Material - Mounting HardwareCord Mounted
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.350 lb.
Carton - Pack DescriptionCarton
Carton - Total Units30 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585037744
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
