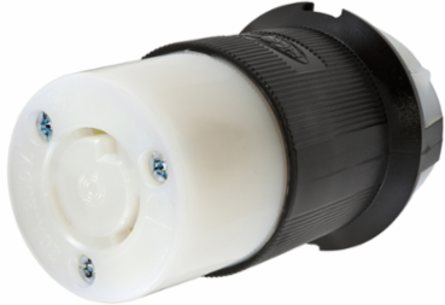

Hubbell Wiring Device-Kellems HBL2323 Twist-Lock Female Connector Body, 20A 250V, 2-Pole 3-Wire Grounding, Black and White
- MPN: HBL2323
- UPC: 783585037844
- PPN: HBL-HBL2323
- UNSPSC: 39121421
CAD
$48.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 250V, 2-Pole 3-Wire Grounding, NEMA L6-20R, Screw Terminal, Black and White Nylon.
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Number of Poles | 2-Pole |
| Grounding | Yes |
| Operating Temperature | -40b0C to 75b0C |
| Dielectric Strength | 2000 V |
| Terminal Type | Screw Terminal |
| Weight | 0.30 lb |
| Material | Composite |
| Country of Origin | US |
| Voltage | 250 VAC |
|---|---|
| Number of Wires | 3-Wire |
| NEMA Rating | L6-20R |
| Wire Size Range | #16 AWG to #8 AWG |
| Connectivity | Pressure Terminal Screws |
| Dimensions | 2.26 in x 2.26 in x 3.86 in |
| Cable Range | 0.360 in - 0.930 in |
| Certifications | UL Listed, CSA Certified, RoHS Compliant |
| Color | Noir, blanc |
