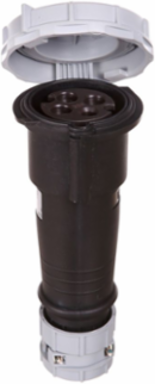

Eaton AH430C5W Eaton Arrow Hart pin and sleeve connector — Voltage Rating: 600 V, Amperage Rating: 30A, Allowable Wire Size: #10-2 AWG, Number Of Wires: Grounding 4
- MPN: AH430C5W
- UPC: 032664732713
- PPN: COW-AH430C5W
CAD
$227.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #10 -#2 AWG, 30A, 3Ø 600V, Back wire, Black, Nickel plated brass, IP67, Nylon, Three-pole, Four-wire, grounding, 0.433-0.985in (1.10-2.5cm), Female, 15 HP, Nylon, Three-phase
Specifications
Key Specifications
- Length
- 10.375 in
- Width
- 4.75 in
- Product Type
- Pin and Sleeve connector
- Amperage Rating
- 30A
- Contact Material
- Nickel plated brass
- Number Of Wires
- Grounding 4
- Cord Diameter
- 0.433-0.985in (1.10-2.5cm)
- Gender
- Female
- Allowable Wire Size
- #10-2 AWG
- Design Type
- Pin and sleeve connector
- Product Series
- Arrow Hart Pin And Sleeve Iec 60309 Devices
Height4.813 in
Weight1.207 lbs
TypeConnector
Voltage Rating600 V
ApplicationIndustrial, food and beverage, wastewater treatment
Number Of PolesThree-pole
PhaseThree-phase
Horsepower15 hp
Torque Rating10 lbf-inch
Face/Body MaterialNylon
