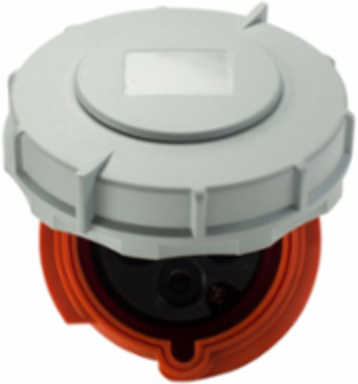

Eaton AH430C12W Eaton Arrow Hart pin and sleeve connector — Voltage Rating: 125/250 V, Amperage Rating: 30A, Allowable Wire Size: #10-2 AWG, Number Of Wires: 4 Grounding
- MPN: AH430C12W
- UPC: 032664732706
- PPN: COW-AH430C12W
CAD
$224.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #10 -#2 AWG, 30A, Extra Heavy-Duty, 125/250V, Back wire, Orange, Nickel plated brass, IP67, IP69K, Nylon, Three-pole, Four-wire, grounding, 0.433-0.985in (1.10-2.5cm), Female, Nylon
Specifications
Key Specifications
| Length | 10.375 in |
|---|---|
| Width | 4.75 in |
| Product Type | Pin and Sleeve connector |
| Amperage Rating | 30A |
| Contact Material | Nickel plated brass |
| Number Of Wires | 4 Grounding |
| Cord Diameter | 0.433-0.985in (1.10-2.5cm) |
| Allowable Wire Size | #10-2 AWG |
| Design Type | Pin and sleeve connector |
| Product Series | Arrow Hart Pin And Sleeve Iec 60309 Devices |
| Height | 4.813 in |
|---|---|
| Weight | 1.207 lbs |
| Type | Connector |
| Voltage Rating | 125/250 V |
| Application | Industrial, food and beverage, wastewater treatment |
| Number Of Poles | Three-pole |
| Gender | Female |
| Torque Rating | 10 lbf-inch |
| Face/Body Material | Nylon |
