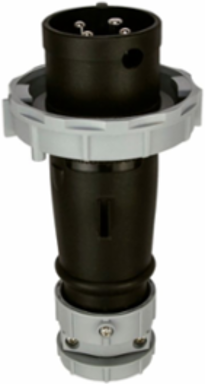

Eaton AH430P5W Eaton Arrow Hart pin and sleeve plug — Voltage Rating: 600 V, Amperage Rating: 30A, Number Of Wires: Grounding 4
- MPN: AH430P5W
- UPC: 040893619675
- PPN: COW-AH430P5W
CAD
$208.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart pin and sleeve plug, IP69K Rated, #10 -#2 AWG, 30A, 3Ø 600V, Back wire, Black, Nickel plated brass, IP67, Nylon, Three-pole, Four-wire, grounding, 0.433-0.985in (1.10-2.5cm), Male, 15 HP, Nylon, Three-phase
Specifications
Key Specifications
| Length | 10.375 in |
|---|---|
| Width | 4.75 in |
| Product Type | Pin and Sleeve plug |
| Amperage Rating | 30A |
| Contact Material | Nickel plated brass |
| Number Of Wires | Grounding 4 |
| Cord Diameter | 0.433-0.985in (1.10-2.5cm) |
| Gender | Male |
| Allowable Wire Size | #10-2 AWG |
| Design Type | Pin and sleeve plug |
| Product Series | Arrow Hart Pin And Sleeve Iec 60309 Devices |
| Height | 4.813 in |
|---|---|
| Weight | 0.997 lbs |
| Type | Plug |
| Voltage Rating | 600 V |
| Application | Industrial, food and beverage, wastewater treatment |
| Number Of Poles | Three-pole |
| Phase | Three-phase |
| Horsepower | 15 hp |
| Torque Rating | 10 lbf-inch |
| Face/Body Material | Nylon |
