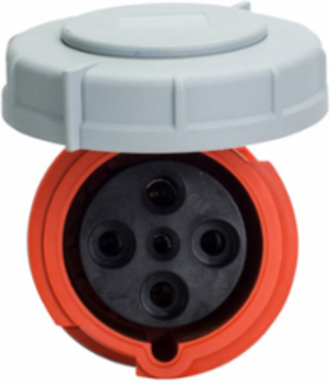

Eaton AH460C12W Eaton Arrow Hart pin and sleeve connector — Voltage Rating: 125/250 V, Amperage Rating: 60A, Allowable Wire Size: #8-2 AWG, #10-2 AWG (ground), #12-16 AWG (pilot), Number Of Wires: 4 Grounding
- MPN: AH460C12W
- UPC: 040893619781
- PPN: COW-AH460C12W
CAD
$335.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), 60A, 125/250V, Back wire, Orange, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, 0.66-1.5in (1.68-3.81cm), Female, Nylon
Specifications
Key Specifications
| Length | 11.5 in |
|---|---|
| Width | 5.125 in |
| Product Type | Pin and Sleeve connector |
| Amperage Rating | 60A |
| Contact Material | Nickel plated brass |
| Number Of Wires | 4 Grounding |
| Cord Diameter | 0.66-1.5in (1.68-3.81cm) |
| Allowable Wire Size | #8-2 AWG, #10-2 AWG (ground), #12-16 AWG (pilot) |
| Design Type | Pin and sleeve connector |
| Product Series | Arrow Hart Pin And Sleeve Iec 60309 Devices |
| Height | 5.125 in |
|---|---|
| Weight | 2.092 lbs |
| Type | Connector |
| Voltage Rating | 125/250 V |
| Application | Industrial, food and beverage, wastewater treatment |
| Number Of Poles | Three-pole |
| Gender | Female |
| Torque Rating | 28 lbf-inch |
| Face/Body Material | Nylon |
