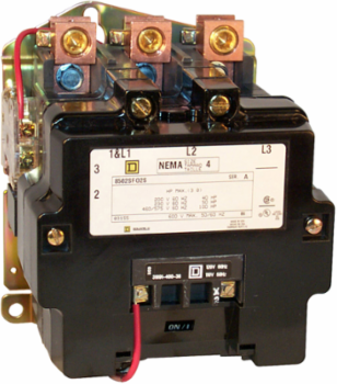

Square D 8502SFO2V08 NEMA Size 4 Contactor, 135A, 100HP at 575VAC, 3 Phase, Open
- MPN: 8502SFO2V08
- UPC: 785901861881
- PPN: SCH-8502SFO2V08
- UNSPSC: 39121529
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 4 non-reversing contactor has a 135 ampere rating. Three phase NEMA Size 4 contactors have 40 HP at 200, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 208 VAC 60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 8.19 inches tall, 6.00 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Features
- Switch heating loads, capacitors, transformers, and motors (with separate overload protection).
- A normally open holding circuit contact for three wire control is provided as standard.
- AC coils are available for application on 50-60 Hertz.
- Power poles, pneumatic timers, and cover-mounted stations (factory or field installable).
- This product is TAA compliant.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|---|
| Weight | 8991 g |
| Compliance | TAA Compliant |
|---|---|
| Depth | 165.10 mm |
Complementary Attributes
| Rated Power In Hp | 40 HP 200 V AC50 HP 230 V AC100 HP 460 V AC, 100 HP 575 V AC |
|---|---|
| Line Rated Current | 135 A |
| Ue Rated Operational Voltage | 600 V AC |
| Control Circuit | common control circuit |
|---|---|
| Uc Control Circuit Voltage | 208 V AC 60 Hz |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL listed file E78351 CCN NLDX, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 16 kg CO2 eq., 15.756218209279433 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 53 kg CO2 eq., 53.24787793656214 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Contactor Application | non-reversing |
| Electrical Connection | screw clamp terminals |
| Local Signalling | no indicator |
| Phase | 3 phase |
| Product Or Component Type | contactor |
| Range Of Product | 8502S |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 5 496 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 152.40 mm |
| Customs Code | 8536490065 |
| Functional Unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 54 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 2.5982874457491154, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 1.7976567166804285, 2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 5 422 kg CO2 eq., 5422.222908502688 |
| Local Publishable Date | 2025-11-18 |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Type | no control units |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3P |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Provided Equipment | fuse not supplied |
| Returnability | Yes |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Height Nominal | 208.03 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 5495.62294881096 |
| Eu Rohs Directive | Compliant |
| Nema Size | 4 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2506044EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Product Compatibility | circuit-breaker 225 A maximum, SCCR: 100 kA at 480 V ACfuse J 200 A maximum, SCCR: 100 kA at 600 V AC, fuse T 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2506044EN |
| Nema Degree Of Protection | not rated (open device) |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
General Attributes
| Phase | 3 phase |
|---|---|
| Provided Equipment | fuse not supplied |
| Product Or Component Type | contactor |
|---|---|
| Range Of Product | 8502S |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
