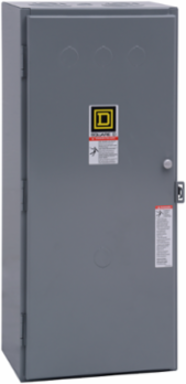

Square D 8502SFG2V02S NEMA Contactor Size 4, 135A, 100HP, 600V, 3 Pole, 120V Coil
- MPN: 8502SFG2V02S
- UPC: 785901619987
- PPN: SCH-8502SFG2V02S
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 4 non-reversing contactor has a 135 ampere rating. Three phase NEMA Size 4 contactors have 40 HP at 200, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is in a NEMA 1 general purpose enclosure. This enclosure is 25.16 inches tall, 11.25 inches wide and 9.00 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States, ZZ |
|---|---|
| Depth | 229 mm |
| Compliance | TAA Compliant |
|---|
Complementary Attributes
| Rated Power In Hp | 40 HP 200 V AC50 HP 230 V AC100 HP 460 V AC, 100 HP 575 V AC |
|---|---|
| Line Rated Current | 135 A |
| Control Circuit | separate control circuit |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL listed file E78351 CCN NLDX, CSA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 33 kg CO2 eq., 33.480430306782736 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 113 kg CO2 eq., 113.14655855611385 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Contactor Application | non-reversing |
| Control Type | no control units |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3P |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Provided Equipment | fuse not supplied |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 54 |
| Width Nominal | 286 mm |
| [Ue] Rated Operational Voltage | 600 V AC |
| Package Weight(Lbs) | 19.105 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 5.521107958073278, 6 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 3.8198455758179937, 4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 5 422 kg CO2 eq., 5422.222908502688 |
| Local Publishable Date | 2025-11-19 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Circuit | separate control circuit |
| Electrical Connection | screw clamp terminals |
| Local Signalling | no indicator |
| Phase | 3 phase |
| Product Or Component Type | contactor |
| Range Of Product | 8502S |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 5 578 kg CO2 eq. |
| Pep Code | ENVPEP2506044EN |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 639 mm |
| [Uc] Control Circuit Voltage | 120 V AC 60 Hz110 V AC 50 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490065 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 5578.190850899477 |
| Eu Rohs Directive | Compliant |
| Nema Size | 4 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2506044EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Product Compatibility | circuit-breaker 225 A maximum, SCCR: 100 kA at 480 V ACfuse J 200 A maximum, SCCR: 100 kA at 600 V AC, fuse T 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2506044EN |
| Nema Degree Of Protection | NEMA 1 painted sheet steel |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
General Attributes
| Phase | 3 phase |
|---|---|
| Provided Equipment | fuse not supplied |
| Product Or Component Type | contactor |
|---|---|
| Range Of Product | 8502S |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
