Square D 8502SEO2V06 NEMA Size 3 Non-Reversing Contactor, 90A, 50HP, 480VAC Coil

MPN: 8502SEO2V06
UPC: 785901788201
PPN: SCH-8502SEO2V06
UNSPSC: 39121529

$2689.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

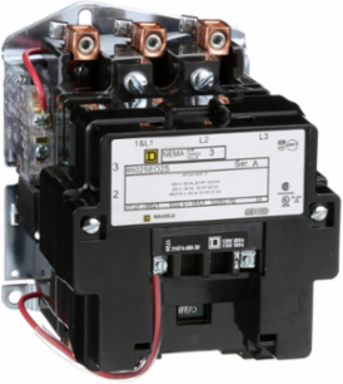

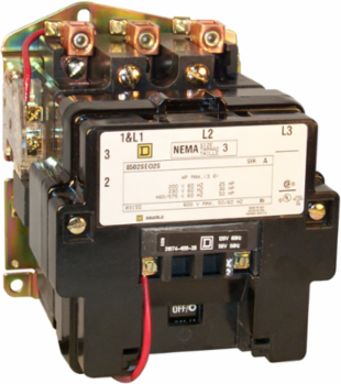

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 3 non-reversing contactor has a 90 ampere rating. Three phase NEMA Size 3 contactors have 25 HP at 200, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 7.09 inches tall, 5.47 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

Features

This 3 pole NEMA Size 3 non-reversing contactor has a 90 ampere rating and 480 VAC coil
Switch heating loads, capacitors, transformers, and electric motors where overload protection is separately provided
Robust design and reliable build for long mechanical life and electrical endurance
Serviceable by replacing contacts and coils
This product is TAA compliant.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Weight	5987 g

Compliance	TAA Compliant
Depth	165.10 mm

Complementary Attributes

Rated Power In Hp	25 HP 200 V AC30 HP 230 V AC50 HP 460 V AC, 50 HP 575 V AC
Line Rated Current	90 A
Ue Rated Operational Voltage	600 V AC

Control Circuit	common control circuit
Uc Control Circuit Voltage	480 V AC 60 Hz440 V AC 50 Hz

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL listed file E78351 CCN NLDX, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	10 kg CO2 eq., 10.491878369364473
Carbon Footprint Of The Manufacturing Phase A1 To A3	35 kg CO2 eq., 35.4571288183959
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Contactor Application	non-reversing
Electrical Connection	screw clamp terminals
Local Signalling	no indicator
Phase	3 phase
Product Or Component Type	contactor
Range Of Product	8502S
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	2 613 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	138.94 mm
Customs Code	8536490065
Functional Unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional Unit Unit	unit
Recyclability Potential In %	54

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	1.730168717350679, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.1970382340969554, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	2 564 kg CO2 eq., 2564.3260258694463
Local Publishable Date	2026-08-26
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	no control units
Energy Efficiency Optimized	False
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Provided Equipment	fuse not supplied
Returnability	No
Sustainable Packaging	No
Database Version	2024-01
Height Nominal	180.09 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Product Compatibility	circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V ACfuse J 200 A maximum, SCCR: 100 kA at 600 V AC, fuse T 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	2613.202240008654
Eu Rohs Directive	Not compliant
Nema Size	3
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2506044EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Environmental Disclosure	ENVPEP2506044EN
Nema Degree Of Protection	not rated (open device)
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3-2023 12 08
