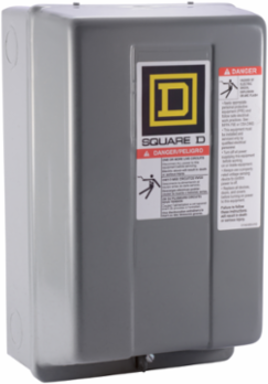

Square D 8502SBG2V02S NEMA Contactor Type S Size 0 18A 5HP 3 Phase 120VAC Coil NEMA 1
Square D 8502SBG2V02S NEMA Contactor Type S Size 0 18A 5HP 3 Phase 120VAC Coil NEMA 1
- MPN: 8502SBG2V02S
- UPC: 785901866220
- PPN: SCH-8502SBG2V02S
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$786.71/ EA
Description
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing contactor has an 18 ampere rating. Three phase NEMA Size 0 contactors have 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is in a NEMA 1 general purpose enclosure. This enclosure is 10.00 inches tall, 6.00 inches wide and 5.28 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Specifications
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot compliant
Environmental
- Product Certifications
- UL listed file E78351 CCN NLDX || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel
Complementary
- Local Signalling
- no indicator
- Auxiliary Contact Composition
- without
- [Uc] Control Circuit Voltage
- 120 V AC 60 Hz || 110 V AC 50 Hz
- Rated Power In Hp
- 3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC
- Provided Equipment
- fuse not supplied
- [In] Rated Current
- 18 A
- Control Circuit
- separate control circuit
- Depth
- 134 mm
- [Ue] Rated Operational Voltage
- 600 V AC
Height254 mm
Nema Size0
Poles Description3P
Electrical Connectionscrew clamp terminals
Product Compatibilitycircuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC || fuse J 60 A maximum, SCCR: 100 kA at 600 V AC || fuse T 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC
Control Typeno control units
Width152 mm
Network Number Of Phases3 phases
Specifications
- Range Of Product
- 8502S
- Product Or Component Type
- contactor
Contactor Applicationnon-reversing
