Square D 8502SBO2V02S NEMA Contactor Type S Size 0 18A 5HP 120VAC Coil 3 Pole
- MPN: 8502SBO2V02S
- UPC: 785901862833
- PPN: SCH-8502SBO2V02S
CAD
$779.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

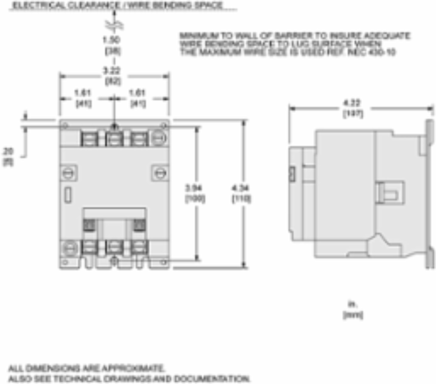

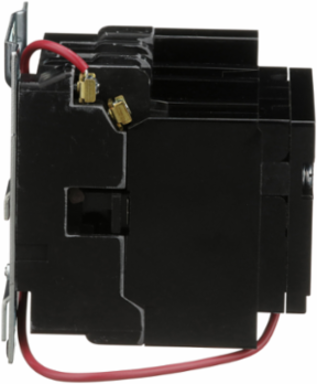

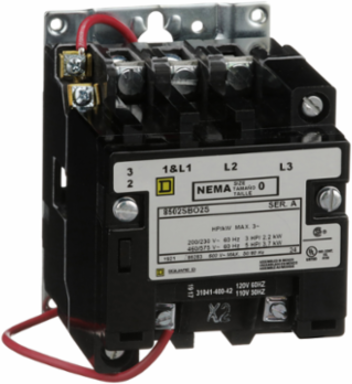

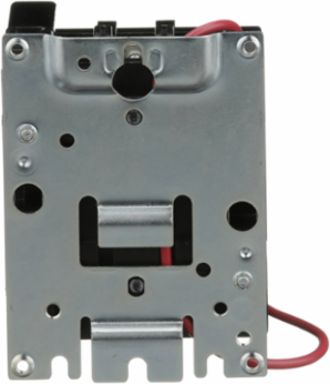

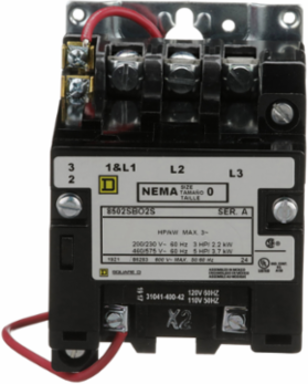

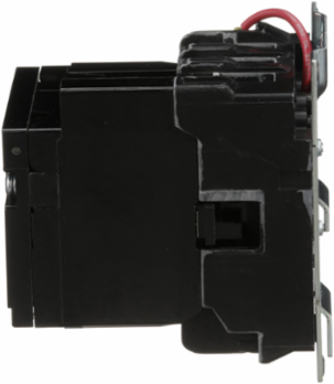

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing contactor has an 18 ampere rating. Three phase NEMA Size 0 contactors have 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- 8502S
- Product Or Component Type
- contactor
Contactor Applicationnon-reversing
Complementary
- Height
- 110.24 mm
- Nema Size
- 0
- Rated Power In Hp
- 3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC
- Control Type
- no control units
- Local Signalling
- no indicator
- Electrical Connection
- screw clamp terminals
- [In] Rated Current
- 18 A
- Width
- 81.79 mm
- [Ue] Rated Operational Voltage
- 600 V AC
Auxiliary Contact Compositionwithout
[Uc] Control Circuit Voltage120 V AC 60 Hz || 110 V AC 50 Hz
Product Compatibilitycircuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC || fuse J 60 A maximum, SCCR: 100 kA at 600 V AC || fuse T 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC
Network Number Of Phases3 phases
Poles Description3P
Provided Equipmentfuse not supplied
Control Circuitseparate control circuit
Depth107.19 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Not compliant
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Environmental
- Product Certifications
- UL listed file E78351 CCN NLDX || CSA
Nema Degree Of Protectionnot rated (open device)
