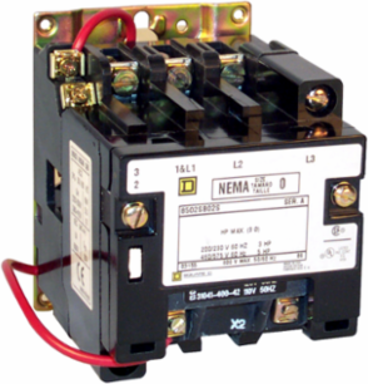

Square D 8502SBO2V01S NEMA Contactor Size 0, 18A, 5HP, 3 Phase, 24VAC Coil, Open
- MPN: 8502SBO2V01S
- UPC: 785901724148
- PPN: SCH-8502SBO2V01S
CAD
$779.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

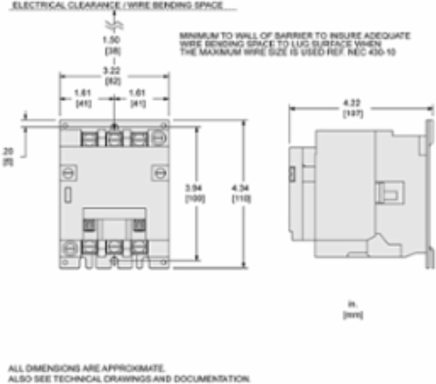

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing contactor has an 18 ampere rating. Three phase NEMA Size 0 contactors have 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 24 VAC 60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|---|
| Depth | 107.19 mm |
| Compliance | TAA Compliant |
|---|
Complementary Attributes
| Rated Power In Hp | 3 HP 200 V AC, 3 HP 230 V AC5 HP 460 V AC, 5 HP 575 V AC |
|---|---|
| Line Rated Current | 18 A |
| Control Circuit | separate control circuit |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL listed file E78351 CCN NLDX, CSA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 3 kg CO2 eq., 3.1228540594968246 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 11 kg CO2 eq., 10.553633464904207 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Circuit | separate control circuit |
| Electrical Connection | screw clamp terminals |
| Local Signalling | no indicator |
| Phase | 3 phase |
| Product Or Component Type | contactor |
| Range Of Product | 8502S |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 359 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 54 |
| Width Nominal | 81.79 mm |
| [Ue] Rated Operational Voltage | 600 V AC |
| Package Weight(Lbs) | 1.782 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.5149758901484733, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.3562923222249498, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 345 kg CO2 eq., 344.93308853090406 |
| Local Publishable Date | 2025-11-18 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Contactor Application | non-reversing |
| Control Type | no control units |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | fuse not supplied |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2506044EN |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 110.24 mm |
| [Uc] Control Circuit Voltage | 24 V AC 60 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490065 |
Environment Attributes Main
| Product Compatibility | circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V ACfuse J 60 A maximum, SCCR: 100 kA at 600 V AC, fuse T 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 359.48084426767855 |
| Eu Rohs Directive | Not compliant |
| Nema Size | 0 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2506044EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2506044EN |
| Nema Degree Of Protection | not rated (open device) |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
General Attributes
| Phase | 3 phase |
|---|---|
| Provided Equipment | fuse not supplied |
| Product Or Component Type | contactor |
|---|---|
| Range Of Product | 8502S |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Accessories
