Square D 9999SPL28R NEMA Motor Starter and contactor, Type S, pilot light kit , LED, red, 120VAC 60Hz, NEMA size 00 to 7, Type 1, 3R, 12

MPN: 9999SPL28R
UPC: 785901686804
PPN: SCH-9999SPL28R

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$431.58/ EA

Qty:

Loading add to cart quantity...

Description

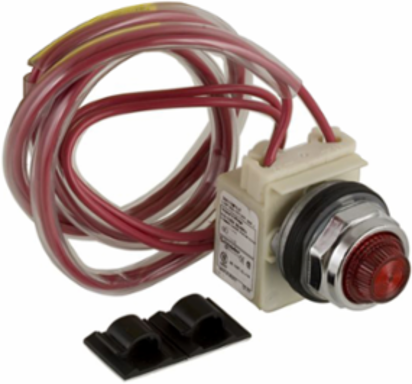

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This red LED pilot light kit is for Type S contactors and starters in a NEMA 1, 3R and 12 enclosure. This pilot light kit will work at 120 VAC. The pilot light is mounted in the door of the enclosure. Kit comes with a red LED lamp and a red pilot light lens. This light module kit is UL listed and CSA certified.

Specifications

Environment

Product Certifications: CSA || UL recognized

Nema Degree Of ProtectionNEMA 1 || NEMA 4 || NEMA 12

Specifications

Range Of Product: type S

Product Destination: contactor || starter

Product Or Component Typepilot light kit

Complementary

[Ue] Rated Operational Voltage: 120 V AC 60 Hz

Signalling Colour: red

Nema Size4 || 3 || 5 || 00 || 2 || 6 || 0 || 7 || 1

Kit Composition1 pilot light || 1 cap || 2 cable clips || 2 instructions

Offer Sustainability

Eu Rohs Directive: Under investigation
