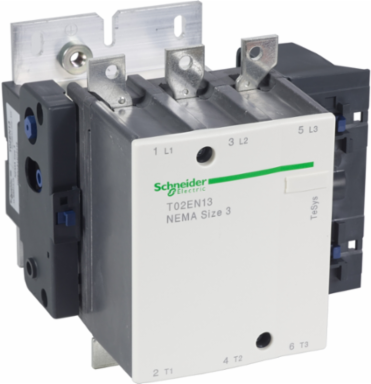

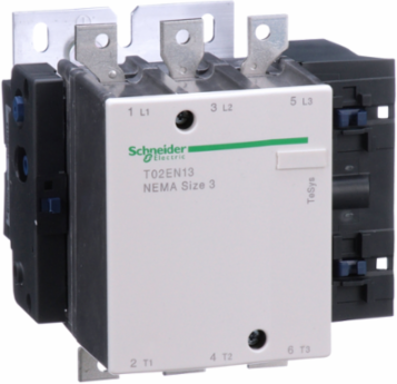

Schneider Electric T02EN13G7 TeSys N Size 3 Contactor, 90A, 50HP, 3-Phase, 120V AC Coil
Schneider Electric T02EN13G7 TeSys N Size 3 Contactor, 90A, 50HP, 3-Phase, 120V AC Coil
- MPN: T02EN13G7
- UPC: 785901955153
- PPN: SCH-T02EN13G7
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2115.15/ EA
Description
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 3 nonreversing contactor mounts on 35mm DIN rail and has a 90 amperage continuous current rating. The contactor has ratings of 25 HP at 200, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open auxiliary contact. This contactor is not in an enclosure. This contactor is 6.38 inches tall, 6.44 inches wide and 6.68 inches deep. It weighs 9.07 lbs. The screw clamp terminals will accept control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.
Features
- High density, space saving design
- Sizes 00 -2 are DIN rail and panel mountable
- Replacing coils requires no tools
- Common accessories across range
- UL Listed, CSA certified, and CE marked
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, CSA
Complementary Attributes
- Maximum Horse Power Rating
- 25 hp 200 V AC, 30 hp 230 V AC, 50 hp 460 V AC, 50 hp 575 V AC
- Line Rated Current
- 90 A
Control Circuitcommon control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Scope Perimeter
- Outside of Europe
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Contactor Application
- non-reversing
- Electrical Connection
- lugs ordered separately
- Package Weight Lbs
- 3.429 kg
- Poles Description
- 3P
- Product Or Component Type
- contactor
- Returnability
- Yes
- Uc Control Circuit Voltage2
- 120 V AC
- Medium Desc
- NEMA Contactor, TeSys N, nonreversing, Size 3, 90A, 50HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open
- Product Kit Identifier
- N
- Uc Control Circuit Voltage5
- 120 V AC
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Control Circuitcommon control circuit
Energy Efficiency OptimizedFalse
Phase3 phase
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductTeSys N
Sustainable PackagingNo
Ue Rated Operational Voltage2600 V AC
Stocking FlagY
Global Commercial StatusCommercialised
Ue Rated Operational Voltage5600 V AC
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Nema Degree Of Protection
- not rated (open device)
- Packaging Made With Recycled Cardboard
- No
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Take BackNo
Mercury FreeYes
Nema Size3
Packaging Without Single Use PlasticNo
General Attributes
- Phase
- 3 phase
- Range Of Product
- TeSys N
Product Or Component Typecontactor
Specifications
- Depth
- 6.68 in
