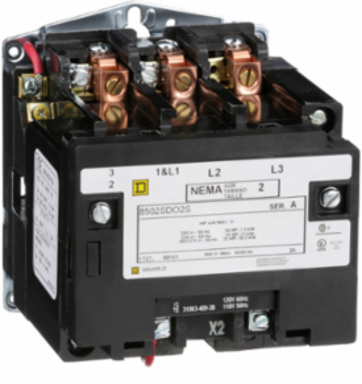

Square D 8502SDO2V02S NEMA Contactor, Type S, nonreversing, Size 2, 45A, 25HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open

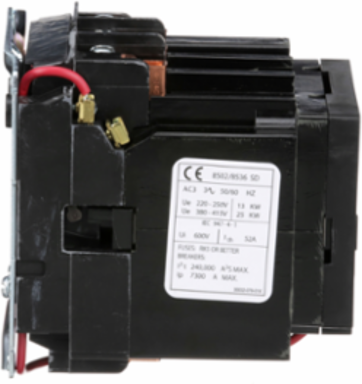

NEMA Contactor, Type S, nonreversing, Size 2, 45A, 25HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open

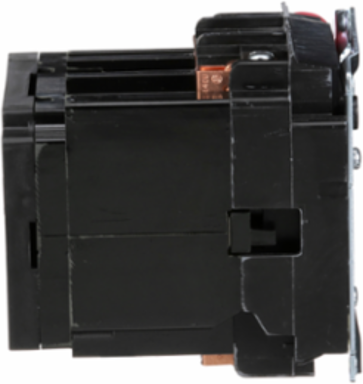

NEMA Contactor, Type S, nonreversing, Size 2, 45A, 25HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open

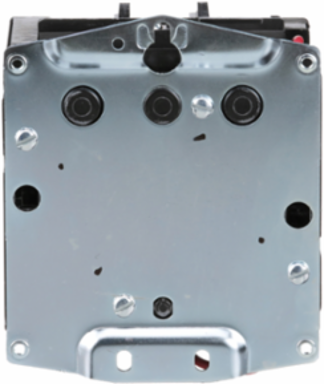

NEMA Contactor, Type S, nonreversing, Size 2, 45A, 25HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open

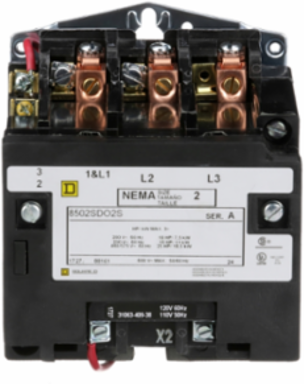

NEMA Contactor, Type S, nonreversing, Size 2, 45A, 25HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open

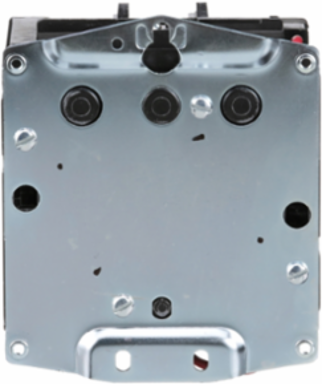

NEMA Contactor, Type S, nonreversing, Size 2, 45A, 25HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open
  • MPN: 8502SDO2V02S
  • UPC: 785901881612
  • PPN: SCH-8502SDO2V02S

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1667.77/ EA

Description

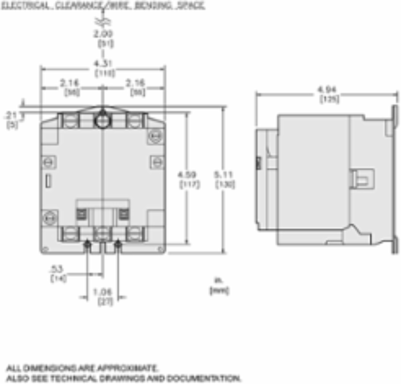

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating. Three phase NEMA Size 2 contactors have 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 5.13 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

Specifications

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot compliant

Environmental

Product Certifications
UL listed file E78351 CCN NLDX || CSA
Nema Degree Of Protectionnot rated (open device)

Complementary

Local Signalling
no indicator
Auxiliary Contact Composition
without
[Uc] Control Circuit Voltage
120 V AC 60 Hz || 110 V AC 50 Hz
Rated Power In Hp
10 HP 200 V AC || 15 HP 230 V AC || 25 HP 460 V AC || 25 HP 575 V AC
Provided Equipment
fuse not supplied
[In] Rated Current
45 A
Control Circuit
separate control circuit
Depth
125.48 mm
[Ue] Rated Operational Voltage
600 V AC
Height130.30 mm
Nema Size2
Poles Description3P
Electrical Connectionscrew clamp terminals
Product Compatibilitycircuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC || fuse J 100 A maximum, SCCR: 100 kA at 600 V AC || fuse T 100 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC
Control Typeno control units
Width109.47 mm
Network Number Of Phases3 phases

Specifications

Range Of Product
8502S
Product Or Component Type
