TeSys Deca Mechanical Latch Block, 110-127V AC/DC, 1200 Cyc/h
Schneider Electric

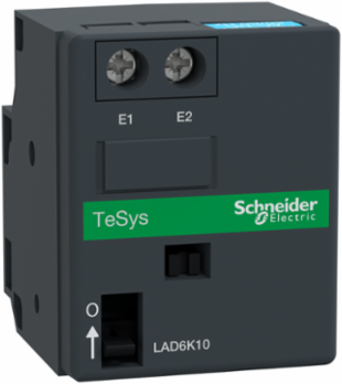

Schneider Electric LAD6K10F TeSys Deca Mechanical Latch Block, 110-127V AC/DC, 1200 Cyc/h

  • MPN: LAD6K10F
  • PPN: SCH-LAD6K10F
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $161.92

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys Deca mechanical latch block, for LC1D09-D80A, LC1DT20-DT80A contactors and CAD control relays (except devices with low consumption coils). Electrical latching and unlatching is performed applying a 110-127V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, United States

    Complementary Attributes

    Maximum Operating Rate
    1200 cyc/h

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Range Of Product
    control relay, TeSys Deca
    Control Circuit Voltage 4
    110/127 V
    Certificate Agency
    UL, CSA
    Carbon Footprint Of The Distribution Phase [A4]
    0.020112505042928736, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.013852101990986205, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    3 kg CO2 eq., 3.1606
    Local Publishable Date
    2026-07-07
    Stocking Flag
    N
    Serviceability
    No
    Field Service Division
    PPIBS
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2011001
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    1936
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Energy Efficiency Optimized
    False
    Mounting Location
    front side
    Power Required In W
    30 W DC
    Product Or Component Type
    mechanical latch block
    Range
    TeSys
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    4 kg CO2 eq.
    Ip Protection 21
    IP2XVDE 0106
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To hold mechanilly the contactor in closed position with contactor coil not powered during a running time between a few minutes and several hours over a period of at least 20 years， control circuit voltage to 42/48 V AC or 42/48 V DC
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; FR
    Recyclability Potential In %
    49
    On-load Factor
    10 %
    Package Weight(Lbs)
    100.000 g
    Warranty (In Months)
    18
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
    3.1606
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    22.321
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    663.02
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    606.91
    Customs Code
    8538908180
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Tripping Controlmanual, electrical
    Control Circuit Voltage 4 Control Circuit Voltage110/127 V
    [Uc] Control Circuit Voltage110/127 V AC 50/60 Hz, 110/127 V DC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.178431706032963
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.5920425743346666
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    TraceabilityNo
    Use Carbon Footprint3.1606
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label3
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Mechanical Durability500000 cycles
    Power Required In Va25 AC
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTHIEC 60068
    ReturnabilityYes
    Sustainable PackagingYes
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2011001EN
    Pep Verification Date2025-06-17
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
    [Ui] Rated Insulation Voltage690 V IEC 60947-5-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]3.1524
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]606.91
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]81.925
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]56.111
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]56.111

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    Ambient Air Temperature For Storage
    -40-80 °C, -40-80 °C
    Take Back
    No
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2011001
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2025-06-17
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
    Product CompatibilityLC1D09...D38 AC/DC, LC1DT20...DT40 AC/DCLC1D40A...D80A 3 phase AC/DCLC1DT60A 3 phases + neutral AC/DC, LC1DT80A 3 phases + neutral AC/DC
    Recycled Metal Content At Cr Level0 %
    Carbon Footprint3.9650388874015445
    Environmental DisclosureENVPEP2011001EN
    Ip Degree Of ProtectionIP2XVDE 0106
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2011001EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Range Of Product
    control relay, TeSys Deca
    Product Or Component Typemechanical latch block

    ETIM

    ETIM 8
    EC002498
    ETIM 9EC002498

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
