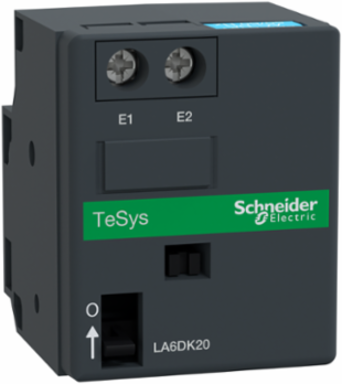

Schneider Electric LA6DK20M TeSys Deca Mechanical Latch Block, 220/240V AC/DC, 1200 cyc/h
- MPN: LA6DK20M
- PPN: SCH-LA6DK20M
CAD
$161.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys Deca mechanical latch block, for contactors LC1D80-D150 (3P/4P) and LP1D40-80 (4P). Electrical latching and unlatching is performed applying a 220-240V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 220/240 V AC 50/60 Hz || 220/240 V DC
- Product Or Component Type
- mechanical latch block
Product CompatibilityLC1D80...D150 3 phases AC || LC1D80 3 phases DC || LC1D150 3 phases DC || LC1D80 3 phases + neutral AC || LC1D115 3 phases + neutral AC || LP1D80 3 phases + neutral DC || LC1D115 3 phases + neutral DC
RangeTeSys
Complementary
- Power Required In W
- 30 W DC
- Net Weight
- 0.09 kg
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1
- Mechanical Durability
- 500000 cycles
- Power Required In Va
- 25 AC
Tripping Controlmanual || electrical
Mounting Locationfront side
Maximum Operating Rate1200 cyc/h
On-Load Factor10 %
Environment
- Product Certifications
- CSA || UL
- Ip Degree Of Protection
- IP2XIEC 60529
- Protective Treatment
- THIEC 60068
Ambient Air Temperature For Operation-25-55 °C
Ambient Air Temperature For Storage-40-80 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011001
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI2011001
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
