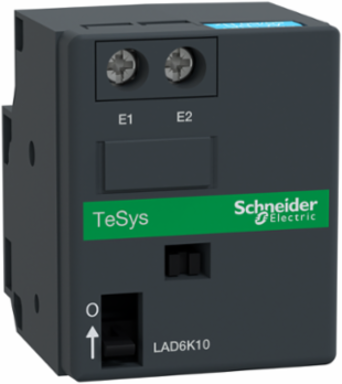

Schneider Electric LAD6K10B TeSys Deca Mechanical Latch Block, 24V AC/DC, 1200 Cycles/Hour
- MPN: LAD6K10B
- PPN: SCH-LAD6K10B
CAD
$161.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca mechanical latch block, for LC1D09-D80A, LC1DT20-DT80A contactors and CAD control relays (except devices with low consumption coils). Electrical latching and unlatching is performed applying a 24V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, United States
Complementary Attributes
- Maximum Operating Rate
- 1200 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range Of Product
- control relay, TeSys Deca
- Control Circuit Voltage 4
- 24 V
- Certificate Agency
- UL, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.178431706032963
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.6 kg CO2 eq., 0.5920425743346666
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Use Carbon Footprint
- 3.1606
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Mechanical Durability
- 500000 cycles
- Power Required In Va
- 25 AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- THIEC 60068
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2011001EN
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- [Uc] Control Circuit Voltage
- 24 V DC24 V AC 50/60 Hz
- On-load Factor
- 10 %
- Package Weight(Lbs)
- 98.000 g
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 3.1606
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 22.321
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 663.02
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 606.91
- Customs Code
- 8538908180
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Tripping Controlmanual, electrical
Control Circuit Voltage 4 Control Circuit Voltage24 V
Carbon Footprint Of The Distribution Phase [A4]0.020112505042928736, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.013852101990986205, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 kg CO2 eq., 3.1606
Local Publishable Date2026-07-10
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2011001
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Energy Efficiency OptimizedFalse
Mounting Locationfront side
Power Required In W30 W DC
Product Or Component Typemechanical latch block
RangeTeSys
Software Versionv5.9.4
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Ip Protection 21IP2XVDE 0106
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo hold mechanilly the contactor in closed position with contactor coil not powered during a running time between a few minutes and several hours over a period of at least 20 years， control circuit voltage to 42/48 V AC or 42/48 V DC
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %49
[Ui] Rated Insulation Voltage690 V IEC 60947-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]3.1524
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]606.91
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]81.925
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]56.111
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]56.111
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2011001
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Product CompatibilityLC1D09...D38 AC/DC, LC1DT20...DT40 AC/DCLC1D40A...D80A 3 phase AC/DCLC1DT60A 3 phases + neutral AC/DC, LC1DT80A 3 phases + neutral AC/DC
Recycled Metal Content At Cr Level0 %
Carbon Footprint3.9650388874015445
Environmental DisclosureENVPEP2011001EN
Ip Degree Of ProtectionIP2XVDE 0106
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2011001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- control relay, TeSys Deca
Product Or Component Typemechanical latch block
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
