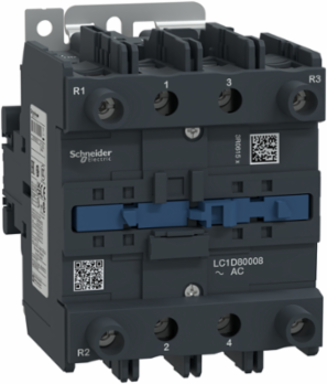

Schneider Electric LC1D80008E7 TeSys Deca Contactor 125A 4-Pole 48V AC
Schneider Electric LC1D80008E7 TeSys Deca Contactor 125A 4-Pole 48V AC
- MPN: LC1D80008E7
- PPN: SCH-LC1D80008E7
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$840.74/ EA
Description
TeSys Deca contactor, 4-pole (2NO+2NC), for non-inductive load applications up to 125A/1000V AC-1. They can be used to create motor starters for almost any type of application. It provides a 48V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.78 inches wide and 5.51 inches deep. It weighs 4.06 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Features
- Long durability with high operating rate
- Reliable performance under high environment
- Multi sdandards certified makes it possible to wide application
- Easy installation and maintenance with compact design
- Multiple and flexible mounting methods depending on exact need
Specifications
Conformance Attributes
- Product Certifications
- CCC, UL, CB Scheme, CSA, CE, UKCA, Marine, EAC
StandardsEN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14, UL 60947-4-1, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, IEC 60335-1:Clause 30.2
Complementary Attributes
- Control Circuit Voltage Limits
- 0.85...1.1 Uc (-40-55 °C):operational AC 60 Hz, 0.3...0.6 Uc (-40-55 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-55 °C):operational AC 50 Hz
- IRMS Rated Making Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
Control Circuit TypeAC 50/60 Hz
Maximum Operating Rate3600 cyc/h at 60 °C
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 200 A gG at <= 690 V coordination type 1 for power circuit, 160 A gG at <= 690 V coordination type 2 for power circuit
- Inrush Power In VA
- 245-245 VA 60 Hz cos phi 0.75 (at 20 °C), 245-245 VA 50 Hz cos phi 0.75 (at 20 °C)
- Mounting Support
- plate, rail
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Icw Rated Short Time Withstand Current2
- 640 A 40 °C - 10 s for power circuit, 990 A 40 °C - 1 s for power circuit, 135 A 40 °C - 10 min for power circuit, 320 A 40 °C - 1 min for power circuit
- Ui Rated Insulation Voltage2
- power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 4.670481955153259, 5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 13 kg CO2 eq., 12.519404112267281
- Connections Terminals
- screw clamp terminals, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end
- Icw Rated Short Time Withstand Current5
- 640 A 40 °C - 10 s for power circuit, 990 A 40 °C - 1 s for power circuit, 135 A 40 °C - 10 min for power circuit, 320 A 40 °C - 1 min for power circuit
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Average Impedance
- 0.8 mOhm - Ith 125 A 50 Hz for power circuit
- Compatibility Code
- LC1D
- Contactor Application
- resistive load
- Electrical Durability
- 0.8 Mcycles 125 A AC-1 <= 440 V
- Flame Retardance
- V1 conforming to UL 94
- Mechanical Durability
- 4 Mcycles
- Package Weight Lbs
- 1.764 kg
- Poles Description
- 4P
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- THIEC 60068-2-30
- Range Of Product
- TeSys Deca
- Sustainable Packaging
- Yes
- Utilisation Category
- AC-1
- Ie Rated Operational Current2
- 125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit
- Ue Rated Operational Voltage2
- power circuit <= 690 V AC 25...400 Hz
- Medium Desc
- IEC contactor, TeSys Deca, nonreversing, 125A resistive, 4 pole, 2 NO and 2 NC, 48VAC 50/60Hz coil, open style
- Product Kit Identifier
- N
- Rated Thermal Current Ith3
- 125 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; FR
- Global Commercial Status
- Commercialised
- Ith Conventional Free Air Thermal Current5
- 125 A (at 60 °C) for power circuit
- Ue Rated Operational Voltage5
- power circuit <= 690 V AC 25...400 Hz
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Hold In Power Consumption In VA26-26 VA 60 Hz cos phi 0.3 (at 20 °C), 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
Mechanical Robustnessvibrations contactor open 2 Gn, 5...300 Hz), shocks contactor open 8 Gn for 11 ms), vibrations contactor closed 3 Gn, 5...300 Hz), shocks contactor closed 10 Gn for 11 ms)
Operating Time20...35 ms closing, 6...20 ms opening
Tightening Torquecontrol circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2, power circuit 12 N.m connector flat Ø 6 to Ø 8 mm, power circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2
Uc Control Circuit Voltage248 V, 48 V AC 50/60 Hz
Carbon Footprint Of The Distribution Phase A40.24697464924060986, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.4 kg CO2 eq., 0.3541146484504795
Carbon Footprint Of The Use Phase B2 B3 B4 B6132 kg CO2 eq., 131.6902173913043
Connections Terminals3control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end
Ui Rated Insulation Voltage5power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1
Local Publishable Date2025-07-09
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Coil Technologywithout built-in suppressor module
Contact CompatibilityM1
Device Short NameLC1D
Fire Resistance850 °C IEC 60695-2-1
Heat Dissipation6-10 W at 50/60 Hz
Overvoltage CategoryIII
Pole Contact Composition2 NO + 2 NC
Power Dissipation Per Pole12.5 W AC-1
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Total Lifecycle Carbon Footprint149 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ith Conventional Free Air Thermal Current2125 A (at 60 °C) for power circuit
Uimp Rated Impulse Withstand Voltage28 kV IEC 60947
Stocking FlagN
Rated Thermal Current Ith2125 A
Pep CodeENVPEP1102005EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; FR
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; FR
Ie Rated Operational Current5125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit
Uc Control Circuit Voltage548 V AC 50/60 Hz
Uimp Rated Impulse Withstand Voltage58 kV IEC 60947
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant , Compliant
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Climatic Withstand
- IACS E10 exposure to damp heat
- IP Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1102005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Permissible Ambient Air Temperature Around The Device-40-60 °C, -40-60 °C, 60-70 °C with derating
Reach Free SHVCYes
Toxic Heavy Metal FreeYes
Carbon Footprint149.4811927564159
Environmental DisclosureENVPEP1102005EN
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 140 mm
