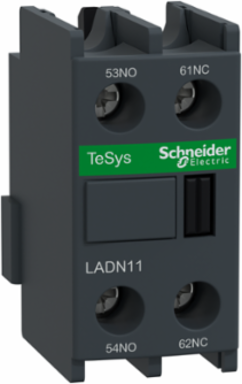

Schneider Electric LADN11 TeSys Deca Auxiliary Contact Block 1NO+1NC, 10A, Front Mounting
- MPN: LADN11
- PPN: SCH-LADN11
CAD
$56.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. TeSys Deca contactors have been designed for perfect integration into control systems. Multi standards certified (IEC, UL, CSA, CCC, EAC). TeSys Deca contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.
Features
- he LADN11 is a clip-on auxiliary contact module from the Schneider Electric TeSys Deca (formerly TeSys D) range. It is used to add extra signaling circuits to a contactor without taking up extra space on the DIN rail.
- his module provides 1 NO (Normally Open) + 1 NC (Normally Closed) instantaneous contacts. The NO contact is typically used for status signaling (like turning on a "Run" light). The NC contact is often used for electrical interlocking (preventing two contactors from closing at the same time).
- The LADN11 features a front-mounting design. It snaps directly onto the face of a TeSys Deca contactor (models LC1D09 through LC1D150). This "one-click" installation requires no tools and automatically aligns the auxiliary actuator with the contactor's internal plunger.
- These contacts are designed with high-reliability "serrated" wiping action. This makes them excellent for switching low-level signals used by PLCs (Programmable Logic Controllers) while still being robust enough to handle standard industrial relay logic.
- The LADN11 is built for high-cycle industrial environments, with a mechanical durability of up to 30 million cycles. It is UL Listed, CSA Certified, and features IP2x "finger-safe" screw terminals to protect technicians during maintenance.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 690 V AC 25...400 Hz
- Rated Insulation Voltage
- 690 V IEC 60947-5-1, 600 V UL, 600 V CSA
- Making Capacity
- 140 A AC, 250 A DC conforming to IEC 60947-5-1
- Minimum Switching Current
- 5 mA
- Non-Overlap Time
- 1.5 ms on energisation and de-energisation no overlap between NC and NO contact
- Pole Contact Composition
- 1 NO + 1 NC
- Mechanical Durability
- 30 Mcycles
- Terminal Type
- Screw clamp terminals 1 4 mm2 flexible with/without cable end, 1 2.5 mm2 flexible with/without cable end, 1 4 mm2 rigid without cable end
- Mounting Location
- front
- Width
- 26 mm (1.02 in)
- IP Degree of Protection
- IP20 IEC 60529
- Ambient Air Temperature for Operation
- -5 to 60 C (23 to 140 F)
- Operating Altitude
- 3000 m (9842 ft)
- Standards
- EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys, TeSys Deca
- Environmental Disclosure
- ENVPEP110807EN_V3
- Mercury Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Compliant
- Sustainable Offer Status
- Green Premium product
Rated Operational Current10 A at 690 V AC
Conventional Free Air Thermal Current10 A at 60 C
Short-Time Rating100 A for 1 s, 120 A for 500 ms, 140 A for 100 ms at 60 C
Minimum Switching Voltage17 V
Insulation Resistance> 10 MOhm
Auxiliary Contacts Operationinstantaneous
Protection TypegG fuse 10 A
Tightening Torque1.7 N.m
Height48 mm (1.89 in)
Depth42 mm (1.65 in)
Protective TreatmentTH IEC 60068
Ambient Air Temperature for Storage-60 to 80 C (-76 to 176 F)
Product CertificationsCB, UL, CSA, CCC, EAC, UKCA
Colordark grey
Range CompatibilityTeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
Environmental Characteristicnormal environment
Toxic Heavy Metal FreeYes
Rohs Exemption InformationYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Device Short NameLADN
