Schneider Electric GB2CD21 TeSys GB2 Circuit Protector, 1P + N, 16A, Magnetic Trip 220A, IP20
Schneider Electric GB2CD21 TeSys GB2 Circuit Protector, 1P + N, 16A, Magnetic Trip 220A, IP20
- MPN: GB2CD21
- PPN: SCH-GB2CD21
- UNSPSC: 39121633
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$103.18/ EA
Description

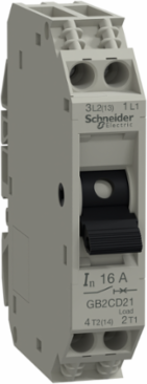

TeSys GB circuit breaker, 2 poles (1P+N), 16A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal magnetic protection with a magnetic tripping level at 220A (13 In) and breaking capacity Icu 1.5kA@240V. It can also be used for protection of DC loads up to 16A/24V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (30mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. Multi standards certified (IEC, UL, CSA).
Specifications
Complementary Attributes
- UE Rated Operational Voltage
- 250 V AC 50/60 Hz IEC 60947-2, 277 V AC 60 Hz CSA C22.2 No 235, 277 V AC 60 Hz UL 1077, 48 V DC
- ICS Rated Service Short Circuit Breaking Capacity
- 75 % 230/240 V AC 50/60 Hz IEC 60947-2
Line Rated Current16 A
UIMP Rated Impulse Withstand Voltage4 kV IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- shocks 22 Gn for 20 ms IEC 60068-2-27, vibrations 5 Gn, 5...110 Hz IEC 60068-2-6
- Carbon Footprint Of The Distribution Phase A4
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0 kg CO2 eq., 0.0045881428216920025
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 2 kg CO2 eq., 2.363720566749677
- Local Data Status
- Publishable
- HTML Description
- Thermal magnetic circuit breaker, TeSys GB2, 1P+N, 16 A, Icu 1.5 kA@240 V
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- WEEE Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option Id
- STANDARD
- Compatibility Code
- GB2
- Electrical Durability
- 8000 cycles
- Fire Resistance
- 960 °C IEC 60695-2-1
- Magnetic Tripping Current
- 220-220 A
- Network Type
- AC/DC
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Tightening Torque
- 1.2 N.m connector
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2306023EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Unit
- unit
- Product Manager
- JEAN-LOUIS DELAGE
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Utilisation Categorycategory A IEC 60947-2, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.17024734217682022, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A30.4 kg CO2 eq., 0.446678751730917
Connections Terminalsconnector 1 0.75-6 mm²solid without cable end, connector 2 0.75-4 mm²solid without cable end, connector 1 0.75-4 mm²flexible with cable end, connector 2 0.75-2.5 mm²flexible with cable end
Local Publishable Date2025-08-13
ManufacturerSchneider Electric
ServiceabilityNo
Field Service DivisionPPIBS
WEEE ApplicabilityFinished product
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard
Device Short NameGB2
Energy Efficiency OptimizedFalse
Halogen Free StatusHalogen free plastic parts product
Network Frequency50/60 Hz IEC 60947-2
Package Weight Lbs61.000 g
Product Or Component Typecircuit breaker
RangeTeSys
Sustainable PackagingYes
Total Lifecycle Carbon Footprint3 kg CO2 eq.
ICS Rated Service Short Circuit Breaking Capacity75 % 230/240 V AC 50/60 Hz IEC 60947-2
Pep Verification Date2025-04-01
PSR VersionPSR-0005-ed3-2023 06 06
Functional Unit DescriptionProtect the installation against overloads and short circuits and protect people and premises at risk of fire or explosion against insulation defects in a circuit with rated voltage 250V (Ue), rated current 2A (In), with 1P+N poles, a rated breaking capacity 15kA (Icn), and, in the Industrial application areas, while protecting them against the penetration of solid objects and liquids (IP20) in accordance with the standard IEC 62262, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Compliant
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- China ROHS Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- 9 MM Pitches
- 2
- Environmental Disclosure
- ENVPEP2306023EN
- IP Degree Of Protection
- IP20 IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2306023EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
ROHS Exemption InformationYes
Reach Free SHVCYes
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint2.9852348034791056
Ambient Air Temperature For Operation-20-60 °C
Halogen Content PerformanceHalogen free plastic parts product
Operating Altitude9842.52 ft (3000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-04-01
PSR VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
