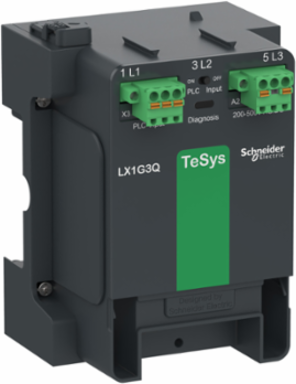

Schneider Electric LX1G3QLSEA TeSys Giga Control Module 200-500V AC/DC 3P, IP20, 600 cyc/mn
- MPN: LX1G3QLSEA
- PPN: SCH-LX1G3QLSEA
CAD
$1235.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
It is a 200-500V AC/DC control module for 3 poles TeSys Giga 115-225 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit & PLC output control, pole status and diagnostic signaling circuits. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France
Depth94.0 mm
Complementary Attributes
- Control Circuit Voltage Limits
- operational 0.8...1.1 Uc 60 °C), drop-out 0...0.45 Uc 60 °C)
Maximum Operating Rate600 cyc/mn 60 °C
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- EMC immunity conforming to IEC 60947-4-1, emission tests criteria A conforming to IEC 60947-4-1, immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3, voltage dips and interruptions immunity test conforming to SEMI F47
- Certificate Agency
- EN/IEC 60947-4-1, UL 60947-4-1A, CSA C22.2 No 60947-4-1
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Coil Technology
- built-in bidirectional peak limiting
- Inrush Power In Va
- 255-255 VA 480 V AC, 60 Hz
- Mechanical Durability
- 5 Mcycles
- Number Of Poles
- 3P
- Product Or Component Type
- contactor coil
- Range
- TeSys
- Returnability
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 144.5 mm
- [Uc] Control Circuit Voltage
- 200...500 V AC/DC 50/60 Hz
- Hold-in Power Consumption In W
- 3.4-3.4 W DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Operating Time20...35 ms opening, 40...55 ms closing
Connections - Terminalscontrol circuit push-in termination 1 0.2-2.5 mm² solid stranded without cable end sleeve AWG 26...AWG 12, control circuit push-in termination 1 0.25-2.5 mm² flexible with cable end sleeve AWG 24...AWG 14, control circuit push-in termination 2 0.5-1.0 mm² rigid or stranded with cable end sleeve AWG 20...AWG 18
Local Publishable Date2025-08-22
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLX1G
Inrush Power In W155.0 W DC
Number Of Modules Per Plc Per Pc1
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Set1
Range Of ProductTeSys G
Sustainable PackagingNo
Pep CodeENVPEP2105013EN
Width Nominal105.7 mm
Hold-in Power Consumption In Va13.4-13.4 VA 480 V AC, 60 Hz
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)1.338 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2105013EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- LC1G115...225
- Pep Code
- ENVPEP2105013EN
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Operating Altitude9842.52 ft (3000 m) without derating, 5000 m with derating factor
Take BackNo
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI2105013
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys G
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
