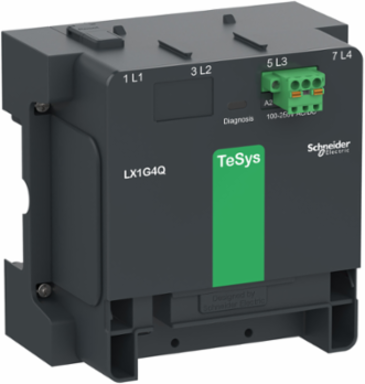

Schneider Electric LX1G4QKUEN TeSys Giga Control Module 100-250V AC/DC for 4P Contactor, IP20
- MPN: LX1G4QKUEN
- PPN: SCH-LX1G4QKUEN
CAD
$1060.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a 100-250V AC/DC control module for 4 poles TeSys Giga 115-225 contactor (standard version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signaling circuits. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France
Depth94.0 mm
Complementary Attributes
- Control Circuit Voltage Limits
- operational 0.8...1.1 Uc 60 °C)drop-out 0...0.45 Uc 60 °C)
Maximum Operating Rate600 cyc/mn 60 °C
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- EMC immunity conforming to IEC 60947-4-1emission tests criteria A conforming to IEC 60947-4-1, immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3voltage dips and interruptions immunity test conforming to SEMI F47
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Coil Technology
- built-in bidirectional peak limiting
- Inrush Power In Va
- 485-485 VA 240 V AC, 50 Hz
- Mechanical Durability
- 5 Mcycles
- Operating Time
- 20...35 ms opening40...55 ms closing
- Product Or Component Type
- contactor coil
- Range
- TeSys
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 144.5 mm
- [Uc] Control Circuit Voltage
- 100...250 V AC/DC 50/60 Hz
- Hold-in Power Consumption In Va
- 9.4-9.4 VA 240 V AC, 50 Hz
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 1.600 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyEN/IEC 60947-4-1, UL 60947-4-1A, CSA C22.2 No 60947-4-1
Local Publishable Date2026-06-27
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLX1G
Inrush Power In W365.0 W DC
Number Of Poles4P
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Set1
Range Of ProductTeSys G
Sustainable PackagingNo
Pep CodeENVPEP2105013EN
Width Nominal140.7 mm
Connections - Terminalscontrol circuit push-in termination 1 0.2-2.5 mm² solid stranded without cable end sleeve 26 AWG...12 AWGcontrol circuit push-in termination 1 0.25-2.5 mm² flexible with cable end sleeve 24 AWG...14 AWGcontrol circuit push-in termination 2 0.5-1.0 mm² rigid or stranded with cable end sleeve 20 AWG...18 AWG
Hold-in Power Consumption In W5.2-5.2 W DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109150
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- LC1G115...225
- Pep Code
- ENVPEP2105013EN
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Permissible Ambient Air Temperature Around The Device-40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Operating Altitude9842.52 ft (3000 m) without derating5000 m with derating factor
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys G
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
