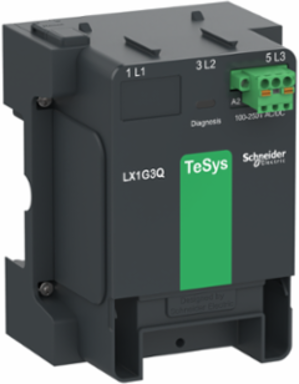

Schneider Electric LX1G3QKUEN TeSys Giga Control Module 100-250V AC/DC, 3 Poles, IP20 Protection

MPN: LX1G3QKUEN
PPN: SCH-LX1G3QKUEN
UNSPSC: 39121010

$1038.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

It is a 100-250V AC/DC control module for 3 poles TeSys Giga 115-225 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signaling circuits. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.

Features

AC/DC wide band electronic coil, more robust to voltage fluctuations and address different global voltage systems
Less number of references, simple to select, choose means less inventory
Coils are accessible from the front and maintained with very low down times
Low power consumption make significant savings on automation equipment, saves space and simplifies the diagrams
Advanced & Standard versions to address customer needs, PLC output control in Advanced version
Unique QR code, quick access to complete product data, technical video, anti-counterfeit checking and instruction sheet
Unique QR code provides quick access to complete product information
Designed to meet needs of demanding applications built-in with advanced features and functionalities

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil

Depth	94.0 mm

Complementary Attributes

Control Circuit Voltage Limits	operational 0.8...1.1 Uc 60 °C)drop-out 0...0.45 Uc 60 °C)
Uc Control Circuit Voltage	100...250 V AC/DC 50/60 Hz

Maximum Operating Rate	600 cyc/mn 60 °C

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electromagnetic Compatibility	EMC immunity conforming to IEC 60947-4-1emission tests criteria A conforming to IEC 60947-4-1, immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3voltage dips and interruptions immunity test conforming to SEMI F47
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Coil Technology	built-in bidirectional peak limiting
Inrush Power In Va	485-485 VA 240 V AC, 50 Hz
Mechanical Durability	5 Mcycles
Operating Time	20...35 ms opening40...55 ms closing
Product Or Component Type	contactor coil
Range	TeSys
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal	144.5 mm
Nbr. Of Units In Pkg.	1
Hold In Power Consumption In Va	9.4-9.4 VA 240 V AC, 50 Hz
Halogen Free Status	Halogen free plastic parts product

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	EN/IEC 60947-4-1, UL 60947-4-1A, CSA C22.2 No 60947-4-1
Local Publishable Date	2026-06-27
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2105013
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2121
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	LX1G
Inrush Power In W	365.0 W DC
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	1
Range Of Product	TeSys G
Sustainable Packaging	No
Connections Terminals	control circuit push-in termination 1 0.2-2.5 mm² solid stranded without cable end sleeve 26 AWG...12 AWGcontrol circuit push-in termination 1 0.25-2.5 mm² flexible with cable end sleeve 24 AWG...14 AWGcontrol circuit push-in termination 2 0.5-1.0 mm² rigid or stranded with cable end sleeve 20 AWG...18 AWG
Width Nominal	105.7 mm
Customs Code	8505907501
Hold In Power Consumption In W	5.2-5.2 W DC
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage	-60-80 °C, -60-80 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Circularity Profile	ENVEOLI2105013
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP20 IEC 60529
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	LC1G115...225
Pep Code	ENVPEP2105013EN

Ambient Air Temperature For Operation	-25-60 °C, -25-60 °C
Permissible Ambient Air Temperature Around The Device	-40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
Halogene Performance	Halogen free plastic parts product
Mercury Free	Yes
Environmental Disclosure	ENVPEP2105013EN
Halogen Content Performance	Halogen free plastic parts product
Operating Altitude	9842.52 ft (3000 m) without derating5000 m with derating factor
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
