Schneider Electric LX1G3SEHEN TeSys Giga Control Module 48-130V AC/DC, 3 Poles, IP20, 600 Cycles/Min
Schneider Electric LX1G3SEHEN TeSys Giga Control Module 48-130V AC/DC, 3 Poles, IP20, 600 Cycles/Min
- MPN: LX1G3SEHEN
- PPN: SCH-LX1G3SEHEN
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$979.86/ EA
Description

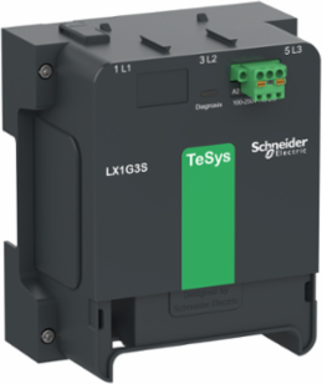

It is a 48-130V AC/DC control module for 3 poles TeSys Giga 400-500 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signaling circuits. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
Specifications
Specifications
- [Uc] Control Circuit Voltage
- 48...130 V AC/DC 50/60 Hz
- Product Or Component Type
- contactor coil
- Maximum Operating Rate
- 600 cyc/mn 60 °C
- Operating Time
- 20...35 ms opening || 40...55 ms closing
- Device Short Name
- LX1G
Range CompatibilityTeSys G LX1G contactor coil
RangeTeSys
Poles Description3P
Product CompatibilityLC1G400...500
Mechanical Durability5 Mcycles
Complementary
- Control Circuit Voltage Limits
- operational 0.8...1.1 Uc 60 °C) || drop-out 0...0.45 Uc 60 °C)
- Inrush Power In Va
- 1065-1065 VA 120 V AC, 60 Hz
- Coil Technology
- built-in bidirectional peak limiting
- Inrush Power In W
- 760.0 W DC
Hold-In Power Consumption In W4.9-4.9 W DC
Connections - Terminalscontrol circuit push-in termination 1 0.2-2.5 mm² solid stranded without cable end sleeve AWG 26...AWG 12 || control circuit push-in termination 1 0.25-2.5 mm² flexible with cable end sleeve AWG 24...AWG 14 || control circuit push-in termination 2 0.5-1.0 mm² rigid or stranded with cable end sleeve AWG 20...AWG 18
Hold-In Power Consumption In Va15.8-15.8 VA 120 V AC, 60 Hz
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Standards
- EN/IEC 60947-4-1 || UL 60947-4-1A || CSA C22.2 No 60947-4-1
- Ip Degree Of Protection
- IP20 IEC 60529
- Ambient Air Temperature For Storage
- -60-80 °C
- Quantity Per Set
- 1
- Depth
- 93.0 mm
Height167.0 mm
Electromagnetic CompatibilityEMC immunity conforming to IEC 60947-4-1 || emission tests criteria A conforming to IEC 60947-4-1 || immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 || voltage dips and interruptions immunity test conforming to SEMI F47
Pollution Degree3 IEC 60947-1
Operating Altitude3000 m without derating || 5000 m with derating factor
Width140.0 mm
Permissible Ambient Air Temperature Around The Device-40-70 °C at Uc
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2105013
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product
