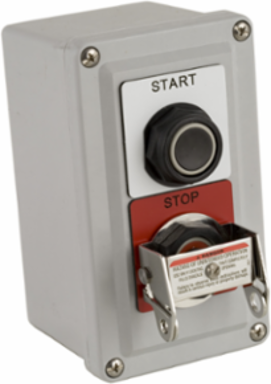

Square D 9001SKY203 CONTROL STATION + OPERATORS

MPN: 9001SKY203
UPC: 785901044604
PPN: SCH-9001SKY203

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$504.37/ EA

Qty:

Loading add to cart quantity...

Description

This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This control station features contact block and START STOP legend plate." "It has 2 pushbutton with 1 NO and 2 NC contact." "It is a complete control station with a rated voltage of 600V AC and rated operating current of 10A." "It is furnished with screw clamp terminals for electrical connection." "It is a NEMA 1/3/4/13 rated product." "The control station is made of polymeric." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also used in automotive, water and wastewater treatment applications." "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "This product can be wall mounted, suitable for indoor/outdoor installation." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Specifications

Complementary

Connector Type: screw clamp connector

Enclosure/Cubicle Description: wall-mounted enclosure 2 cut-outs

Enclosure Material: polymeric

[Ue] Rated Operational Voltage: 600 V

[Ie] Rated Operational Current Ac10 A

Control Station Composition2 push-buttons 1 NO + 2 NC

Type Of Installationindoor/outdoor

Offer Sustainability

China Rohs Regulation: X

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP121030EN

Toxic Heavy Metal Free: Yes

Reach Regulation: Free of Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of SvhcYes

Key Specifications

Contact Block Name: KA1 || KA3

Provided Equipment: label plate START-STOP

Device Short Name: 9001SK

Range Of ProductHarmony 9001KY

Product Or Component Typecontrol station

Environment

Product Certifications: CSA LR25490 class 3211 03 || CE || UL listed file E42259 CCN NKCR

Nema Degree Of Protection: NEMA 4 || NEMA 3 || NEMA 1 || NEMA 13

Environmental Characteristic: resistant against immersion in water || dust and oil resistant

Ambient Air Temperature For Operation-25-60 °C

Ambient Air Temperature For Storage-40-70 °C
