Schneider Electric 9001SKY201 Control Station with 2 Pushbuttons, 600V AC, NEMA 1/3/4/13 Rating
- MPN: 9001SKY201
- UPC: 785901154181
- PPN: SCH-9001SKY201
CAD
$418.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

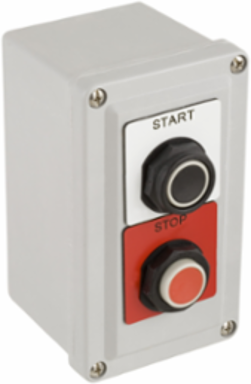

The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has polymeric (plastic) enclosure (9001SKY2) with two push button operators. Control station has a black full guard momentary push button (9001SKR1B) in the top hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a legend plate that is marked START (9001SKN101WP). Control station has a red no guard momentary push button (9001SKR3R) in the bottom hole. The push button has a contact block with 1 normally closed contact (9001KA3). The operator has a red legend plate that is marked STOP (9001SKN102RP). The enclosure has one 0.75 inch conduit hub with 14 NPT thread. Enclosure is 7.65 inches tall, 3.82 inches wide and 4.53 inches deep. This enclosure is rated for NEMA 1, 3, 4, 4X 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Physical Attributes
| Color Of Cover | grey |
|---|
| Housing Color | grey |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Contact Block Name | KA3, KA1 |
| Certificate Agency | CSA LR25490 class 3211 03, UL listed file E42259 CCN NKCR, CE |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Connector Type | screw clamp connector |
| Dc Control Voltage | 125-600 V |
| Enclosure Material | polymeric |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | label plate START-STOP |
| Returnability | Yes |
| Ac Control Voltage 50 Hz | 600-600 V |
| Number Of Command Positions | 2 |
| Number Of Contacts As Normally Open Contact | 1 |
| Color Of Cover | grey |
| Pep Code | ENVPEP1210030EN |
| [Ue] Rated Operational Voltage | 600 V |
| Emergency Power Off (Epo) | no |
| Package Weight(Lbs) | 907.2 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Environmental Characteristic | dust and oil resistant, resistant against immersion in water |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Station Composition | 2 push-buttons 1 NO + 2 NC |
| Device Short Name | 9001SK |
| Housing Material | metal |
| Product Or Component Type | control station |
| Range Of Product | Harmony 9001KY |
| Sustainable Packaging | No |
| Ac Control Voltage 60 Hz | 600-600 V |
| Number Of Contacts As Normally Closed Contact | 2 |
| Number Of Push Buttons | 2 |
| Housing Color | grey |
| [Ie] Rated Operational Current Ac | 10 A |
| Enclosure/Cubicle Description | wall-mounted enclosure 2 cut-outs |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509031 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-60 °C, -25-60 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP1210030EN |
| Ip Degree Of Protection | IP66 |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1210030EN |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | NEMA 4/13 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | control station |
|---|---|
| Range Of Product | Harmony 9001KY |
| Provided Equipment | label plate START-STOP |
|---|
ETIM
| ETIM 8 | EC000225 |
|---|
| ETIM 9 | EC000225 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
