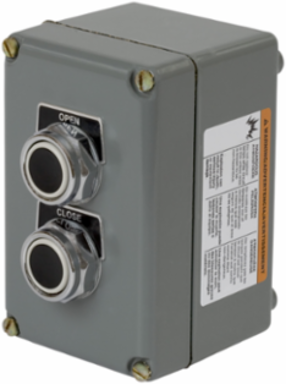

Schneider Electric 9001KYK26 Harmony Control Station - NEMA 4, Indoor/Outdoor, 2 Push-Buttons
- MPN: 9001KYK26
- UPC: 785901039990
- PPN: SCH-9001KYK26
CAD
$393.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony Control Station from Schneider Electric is engineered to withstand the rigors of both indoor and outdoor environments, thanks to its NEMA 4 rating. Featuring two push-buttons, it provides a reliable interface for automation and control applications, making it ideal for operators seeking efficient and straightforward functionality. With its robust construction, this control station is designed to ensure lasting durability while delivering precise performance in various industrial settings.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Physical Attributes
| Color Of Cover | grey |
|---|
| Housing Color | grey |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Environmental Characteristic | resistant against immersion in water, dust and oil resistant |
| Connections - Terminals | direct connection 2 AWG) solid stranded, direct connection 12 AWG) solid stranded, direct connection 24 AWG) solid stranded |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 1.5712947445 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 12 kg CO2 eq., 12.196700438 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Block Name | KA1 |
| Dc Control Voltage | 125-600 V |
| Enclosure Material | die cast zinc alloy Gray |
| Mechanical Interlocking | without mechanical interlock |
| Product Or Component Type | control station |
| Provided Equipment | label plate OPEN-CLOSE |
| Returnability | No |
| Sustainable Packaging | Yes |
| Ac Control Voltage 50 Hz | 125-600 V |
| Number Of Command Positions | 2 |
| Color Of Cover | grey |
| Pep Code | ENVPEP2503027EN |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| Certificate Agency | UL Listed |
| [Ue] Rated Operational Voltage | 300 V |
| Emergency Power Off (Epo) | no |
| Package Weight(Lbs) | 1.814 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Level Or Class | class III, Class II Division 2 Group G |
| Carbon Footprint Of The Distribution Phase [A4] | 0.2441352701, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.3855478248, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Connector Type | screw clamp connector |
| Control Station Composition | 2 push-buttons 2 NO + 2 NC |
| Device Short Name | 9001KY |
| Housing Material | metal |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | for hoisting and mechanical handling applications |
| Range Of Product | Harmony 9001KY |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 14 kg CO2 eq. |
| Ac Control Voltage 60 Hz | 125-600 V |
| Number Of Push Buttons | 2 |
| Housing Color | grey |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; MX |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| Recyclability Potential In % | 15 |
| [Ie] Rated Operational Current Ac | 10 A |
| Enclosure/Cubicle Description | wall-mounted enclosure 2 cut-outs Ø 30 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509031 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-60 °C, -25-60 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 14.3976782774 |
| Environmental Disclosure | ENVPEP2503027EN |
| Ip Degree Of Protection | IP66 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503027EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | NEMA 4/13 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | control station |
|---|---|
| Range Of Product | Harmony 9001KY |
| Provided Equipment | label plate OPEN-CLOSE |
|---|
ETIM
| ETIM 8 | EC000225 |
|---|
| ETIM 9 | EC000225 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
