Schneider Electric 9001KYK23 Harmony Control Station, 2 NO + 2 NC, NEMA 3/4/13, 10A Rating

MPN: 9001KYK23
UPC: 785901738138
PPN: SCH-9001KYK23
UNSPSC: 39121565

$444.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

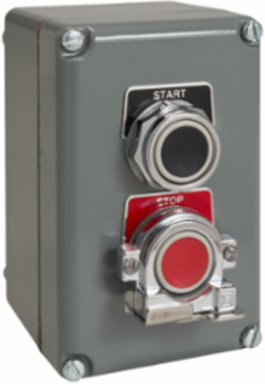

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has a gray die cast zinc enclosure (9001KY2) with two operators. Control station has a black full guard momentary push button (9001KR1B) in the top hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a black legend plate that is marked START (9001KN201). Control station has a red no guard momentary push button (9001KR3R) in the bottom hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a red legend plate that is marked STOP (9001KN202). The STOP push button has a lock out (9001K4). The enclosure has one 0.75 inch conduit opening with 14 NPT thread. Enclosure is 5.75 inches tall, 3.62 inches wide and 4.16 inches deep. This enclosure is rated for NEMA 1, 3, 4, 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Features

High resistance to corrosion
Simplicity and speed installation
Long-term reliability
Complies with to IEC, UL, CSA and NOM standards, CE marking

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Weight	1719 g

Complementary Attributes

Ie Rated Operational Current Ac	10 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Provided Equipment	contact block, legend plate
Carbon Footprint Of The End Of Life Phase C1 To C4	1 kg CO2 eq., 1.4890053285
Carbon Footprint Of The Manufacturing Phase A1 To A3	12 kg CO2 eq., 11.5579537226
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Control Station Composition	2 push-buttons 2 NO + 2 NC START-STOP
Device Short Name	KY
Housing Material	metal
Product Or Component Type	complete control station
Returnability	No
Sustainable Packaging	Yes
Ac Control Voltage 50 Hz	125-600 V
Number Of Command Positions	2
Number Of Contacts As Normally Open Contact	2
Color Of Cover	grey
Connections Terminals	screw-clamp terminals
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Emergency Power Off Epo	no
Functional Unit Description	The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments
Functional Unit Unit	Unit
Recyclability Potential In %	15

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	0.2313497956, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.3653565109, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-08-10
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Contact Block Name	KA1
Dc Control Voltage	125-600 V
Enclosure Material	die cast zinc alloy Gray
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony 9001K
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	14 kg CO2 eq.
Ac Control Voltage 60 Hz	125-600 V
Number Of Contacts As Normally Closed Contact	2
Number Of Push Buttons	2
Housing Color	grey
Database Version	2022-01
Enclosure/Cubicle Description	surface mounting
Customs Code	8536509035
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	13.6436653577
Environmental Disclosure	ENVPEP2503027EN
Ip Degree Of Protection	IP66
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2503027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant
Nema Degree Of Protection	NEMA 4/13
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29
