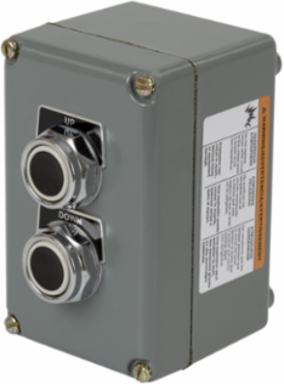

Square D 9001KYK25 complete control station, Harmony 9001K, operators, indoor outdoor installation

complete control station, Harmony 9001K, operators, indoor outdoor installation
  • MPN: 9001KYK25
  • UPC: 785901852216
  • PPN: SCH-9001KYK25

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$393.49/ EA

Description

This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This control station features contact block and UP DOWN legend plate." "It has 1 pushbutton with 1 NO and 1 NC contact." "It is a complete control station with a rated operating current of 10A." "It is furnished with screw clamp terminals for electrical connection." "It is a NEMA 3/4/13 rated product." "The control station is made of die-cast zinc alloy and available in grey color." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also used in automotive, water and wastewater treatment applications." "This product can be surface mounted, suitable for indoor/outdoor installation." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Specifications

Complementary

[Ie] Rated Operational Current Ac
10 A
Connections - Terminals
screw-clamp terminals
Enclosure Material
die cast zinc alloy grey
Enclosure/Cubicle Descriptionsurface mounting
Control Station Composition1 push-button 1 NO + 1 NC UP-DOWN
Type Of Installationindoor/outdoor

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121027EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Environment

Nema Degree Of Protection
NEMA 3/4/13

Key Specifications

Contact Block Name
KA1
Provided Equipment
contact block || legend plate
Device Short Name
KY
Range Of ProductHarmony 9001K
Product Or Component Typecomplete control station
