Square D

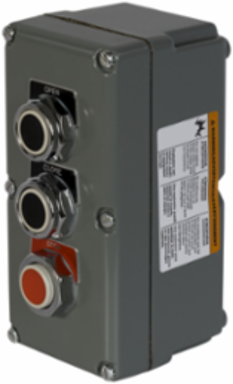

Square D 9001KYK33 Complete Control Station, 10A, 3 NO + 3 NC, NEMA 3/4/13, Zinc

Complete Control Station, 10A, 3 NO + 3 NC, NEMA 3/4/13, Zinc
  • MPN: 9001KYK33
  • UPC: 785901616221
  • PPN: SCH-9001KYK33

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$529.82/ EA

Description

This complete control station with two pushbuttons provides an ergonomic interface for your machines The control station is composed of three push-buttons with 3 NO + 3 NC contacts (Open-Close-Stop), and it is connected to control circuits with classic screw-clamp connections It can be used indoor It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, Type 3, 4 and 13)

Specifications

Complementary

[Ie] Rated Operational Current Ac
10 A
Connections - Terminals
screw-clamp terminals
Enclosure Material
die cast zinc alloy grey
Enclosure/Cubicle Descriptionsurface mounting
Control Station Composition3 push-buttons 3 NO + 3 NC OPEN-CLOSE-STOP
Type Of Installationindoor/outdoor

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121027EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Environment

Nema Degree Of Protection
NEMA 3/4/13

Specifications

Contact Block Name
KA1
Provided Equipment
contact block || legend plate
Device Short Name
KY || 9001KY
Range Of ProductHarmony 9001K
Product Or Component Typecomplete control station
