Square D

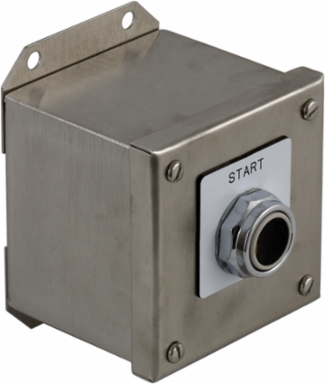

Square D 9001KYSS101 control station, Harmony 9001K, KY, operators, screw clamp connection, 300V

control station, Harmony 9001K, KY, operators, screw clamp connection, 300V
  • MPN: 9001KYSS101
  • UPC: 785901831297
  • PPN: SCH-9001KYSS101

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$487.11/ EA

Description

This complete control station with two pushbuttons provides an ergonomic interface for your machines The control station is composed of one push-button momentary 1 NO/1 NC, and it is connected to control circuits with classic screw-clamp connections It can be used indoor It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, Type 3, 4 and 13)

Specifications

Key Specifications

Contact Block Name
KA1
Level Or Class
Class II Division 2 Group G || class III
Provided Equipment
label plate START
Device Short Name
9001KY
Range Of ProductHarmony 9001KY
Product Specific Applicationfor hoisting and mechanical handling applications
Product Or Component Typecontrol station

Complementary

Connector Type
screw clamp connector
Enclosure/Cubicle Description
wall-mounted enclosure 1 cut-out Ø 30 mm
Control Station Composition
1 push-button momentary 1 NO/1 NC
Mechanical Interlocking
without mechanical interlock
[Ue] Rated Operational Voltage
300 V
[Ie] Rated Operational Current Ac10 A
Connections - Terminalsdirect connection AWG 2) solid stranded || direct connection AWG 12) solid stranded || direct connection AWG 24) solid stranded
Enclosure Materialstainless steel
Type Of Installationindoor/outdoor

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121029EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Environment

Product Certifications
UL listed
Nema Degree Of Protection
NEMA 3 || NEMA 13 || NEMA 4 || NEMA 1
Environmental Characteristic
resistant against immersion in water || dust and oil resistant
Ambient Air Temperature For Operation-25-60 °C
Ambient Air Temperature For Storage-40-70 °C
