Square D

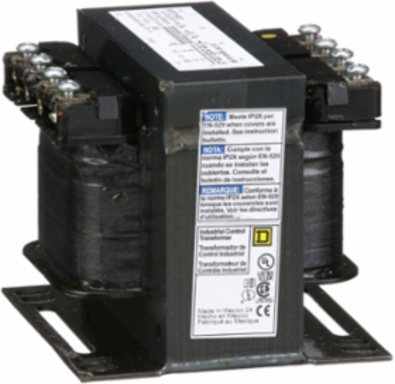

Square D 9070T150D16 Transformer, Type T, industrial control, 150VA, 1 phase, 600V primary, 24V secondary, 55C rise

Transformer, Type T, industrial control, 150VA, 1 phase, 600V primary, 24V secondary, 55C rise
  • MPN: 9070T150D16
  • UPC: 785901415978
  • PPN: SCH-9070T150D16

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$136.43/ EA

Description

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 150VA and is 1 phase. It has a 600V primary voltage and 24V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Specifications

Complementary Attributes

Rated Power In Va
150 VA UL, 150 VA CSA, 150 VA NOM, 150 VA CE

Important Information Attributes

Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Serviceability
No
Weee Scope
In
Scope Perimeter
Outside of Europe
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Energy Efficiency Optimized
False
Primary Voltage
600 V 24 V
Product Or Component Type
Industrial Control Transformer
Returnability
No
Temperature Rise
55 °C
Pep Code
ENVPEP1308008EN
Pn
1
Local Publishable Date2025-11-13
Stocking FlagY
Device TypeTransformer - dry
TraceabilityNo
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1905
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Phase1 phase
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductT
Sustainable PackagingNo
Warranty In Months18
Offer Owner Code190788

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level
0 %
Environmental Disclosure
ENVPEP1308008EN
Nema Degree Of Protection
not rated (open device)
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP1308008EN
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

General Attributes

Phase
1 phase
Range Of Product
T
Product Or Component TypeIndustrial Control Transformer

ETIM

ETIM 8
EC002486
ETIM 9EC002486

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Specifications
