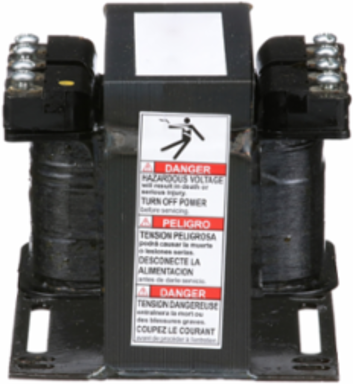

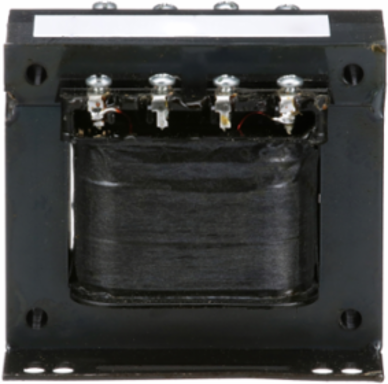

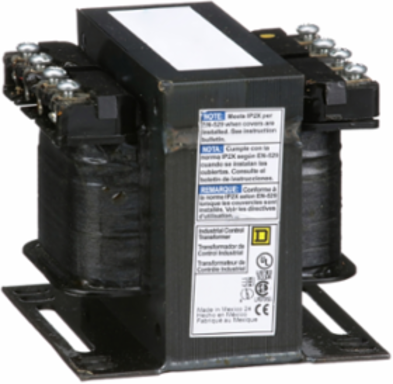

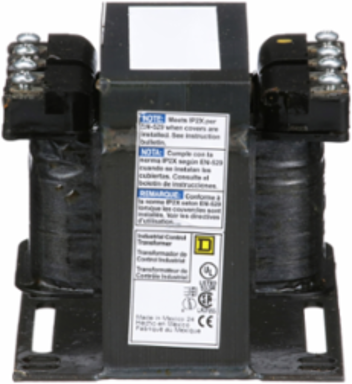

Square D 9070T150D92 Transformer, Type T, industrial control, 150VA, 1 phase, 230x460V primary, 24V secondary, 55C rise
- MPN: 9070T150D92
- PPN: SCH-9070T150D92
CAD
$124.34
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 150VA and is 1 phase. It has a 230x460V primary voltage and 24V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth3.59 in
Complementary Attributes
- Rated Power In Va
- 150 VA UL, 150 VA CSA, 150 VA NOM, 150 VA CE
Important Information Attributes
- Certificate Agency
- UL Listed, CSA
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- Transformer - dry
- Traceability
- No
- Weee Product Category
- 4
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Electrical Connection
- screw clamp terminals
- Phase
- 1 phase
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- T
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 3.2 in
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1905
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Insulation Temperature105 °C
Primary Voltage230 x 460 V 24 V
Product Or Component TypeIndustrial Control Transformer
ReturnabilityNo
Temperature Rise55 °C
Warranty In Months18
Width Nominal3.75 in
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- FSC1
Take BackNo
Mercury FreeYes
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
ETIM
- ETIM 8
- EC002486
ETIM 9EC002486
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
