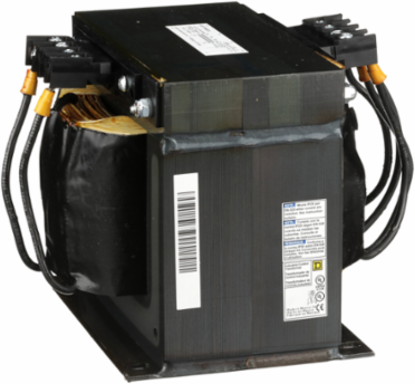

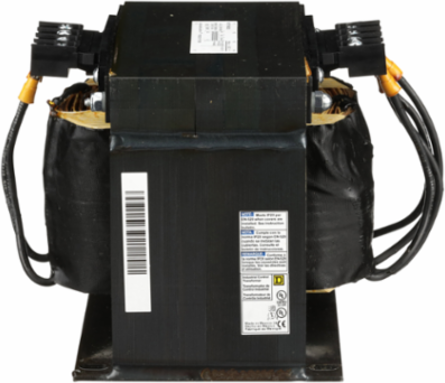

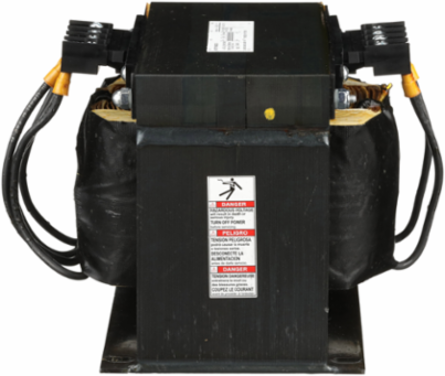

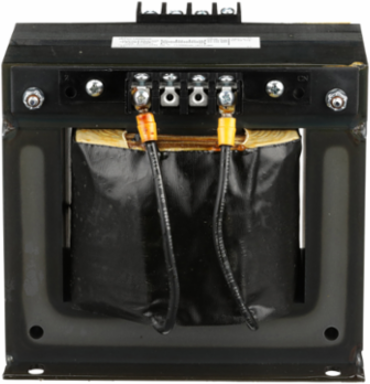

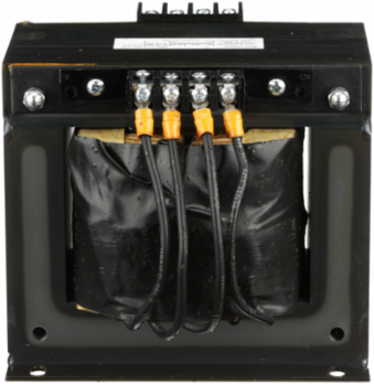

Square D 9070T1500D20 Industrial Control Transformer 1500VA, 1 Phase, 208/230/460V Primary
- MPN: 9070T1500D20
- UPC: 785901322290
- PPN: SCH-9070T1500D20
CAD
$1037.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric 9070T1500D20 is a robust industrial control transformer engineered for reliable performance in various applications. With a power capacity of 1500VA and a versatile primary voltage rating of 208/230/460V, this transformer ensures efficient operation and adaptability to different electrical systems. As a key component in power distribution, it effectively supports the demands of modern industrial environments, making it an essential choice for professionals seeking dependable control solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth7.17 in
Complementary Attributes
- Rated Power In Va
- 1500 VA UL, 1500 VA CSA, 1500 VA NOM1000 VA CE
Important Information Attributes
- Certificate Agency
- UL Listed, CSA
- Local Publishable Date
- 2026-07-01
- Stocking Flag
- Y
- Device Type
- Transformer - dry
- Traceability
- No
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Electrical Connection
- screw clamp terminals
- Insulation Temperature
- 180 °C
- Primary Voltage
- 208/230/460 V 115 V
- Product Or Component Type
- Industrial Control Transformer
- Returnability
- Yes
- Temperature Rise
- 115 °C
- Width Nominal
- 7.06 in
- Package Weight(Lbs)
- 21.768 kg
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1905
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Phase1 phase
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductT
Sustainable PackagingNo
Height Nominal6.17 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504314065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- FSC2
Take BackNo
Mercury FreeYes
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
ETIM
- ETIM 8
- EC002486
ETIM 9EC002486
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
