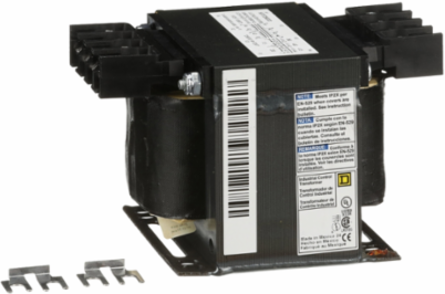

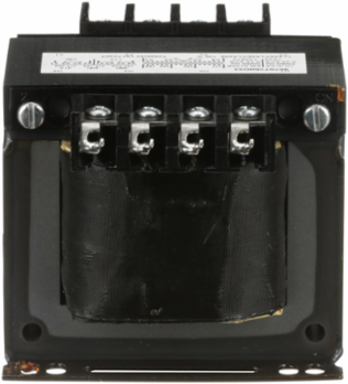

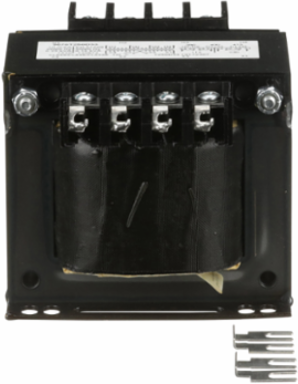

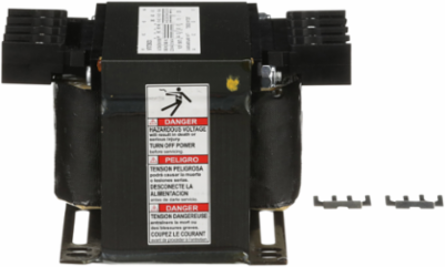

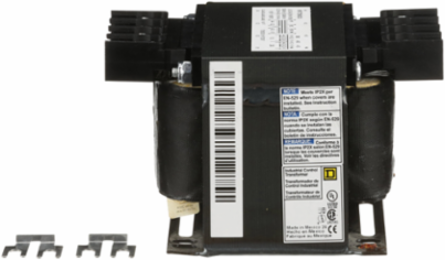

Square D 9070T250D33 Industrial Control Transformer 250VA 1 Phase 380/400/415V Primary

MPN: 9070T250D33
UPC: 785901905141
PPN: SCH-9070T250D33

$231.08

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for efficient operation in industrial settings, this control transformer from Schneider Electric provides reliable power distribution capabilities with a rating of 250VA. It features a single-phase design and accommodates primary voltages of 380, 400, or 415V, making it a versatile choice for various applications. With its robust engineering, this transformer ensures stable performance under demanding conditions, supporting the seamless operation of critical machinery and systems in your facility.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

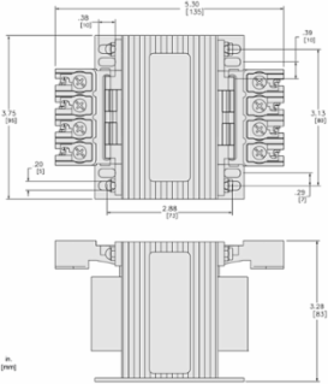

Depth	5.3 in

Complementary Attributes

Rated Power In Va	250 VA UL, 250 VA CSA, 250 VA NOM160 VA CE

Important Information Attributes

Certificate Agency	CSA file LR37055 guide 184-N-90, UL listed file E61239
Local Publishable Date	2026-06-30
Stocking Flag	N
Device Type	Transformer - dry
Traceability	No
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Electrical Connection	screw clamp terminals
Insulation Temperature	130 °C
Phase	1 phase
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	T
Sustainable Packaging	No
Height Nominal	3.2 in
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504314065

Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1905
China Rohs In Scope	No
Without Single Use Plastic	No
Product Kit Identifier	N
Energy Efficiency Optimized	False
Material	copper: winding

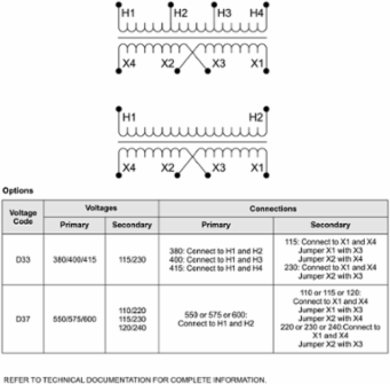

Primary Voltage	380/400/415 V 115/230 V
Product Or Component Type	Industrial Control Transformer
Returnability	Yes
Temperature Rise	80 °C
Width Nominal	3.75 in
Package Weight(Lbs)	3.719 kg
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	FSC2

Take Back	No
Mercury Free	Yes
Nema Degree Of Protection	not rated (open device)
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
