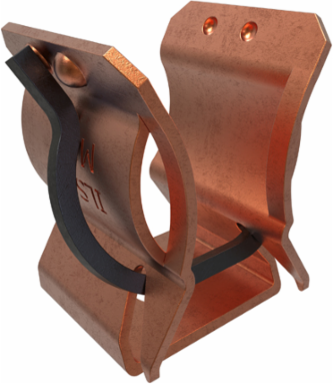

ILSCO M-161 Copper Fuse Clip, Wire Reinforced, 250 Volts, 30 Amps
- MPN: M-161
- UPC: 783669606164
- PPN: ILC-M-161
CAD
$5.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Fuse Clip, Wire Reinforced, 250 Volts, 30 Amps
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.844 in | 21.4376 mm |
|---|---|
| Weight | 0.016 lbs |
| Length | 0.745 in | 18.923 mm |
|---|---|
| Width | 0.594 in | 15.0876 mm |
Voltage
| Voltage Rating | 250 V |
|---|
Dimensions
| Dimension G (IN) | 0.25 |
|---|---|
| Height BX (IN) | 2.25 |
| Length (mm) | 18.923 |
| Mounting Hole Diameter (IN) | 0.203 |
| Thickness (IN) | 0.03 |
| Weight BX (LB) | 1.7 |
| Width (mm) | 15.0876 |
| Dimension G (mm) | 6.35 |
|---|---|
| Height (mm) | 21.4376 |
| Mounting Bolt/Stud Size (mm) | 254 |
| Mounting Hole Diameter (mm) | 5.1562 |
| Thickness (mm) | 0.762 |
| Width BX (IN) | 5 |
Testing Standards
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
|---|
Additional Class Attributes
| Connection | Clip |
|---|---|
| Mounting Hole Type | Thru |
| Fuse Type | Ferrule |
|---|
Material and Finish
| Connector Finish | Tin |
|---|
| Material | Copper |
|---|
Additional Technical Specifications
| Connector Amperage Rating CU (Derated where applicable) | 30 Amps |
|---|
General
| Bag Quantity | 1 |
|---|---|
| NEMA Code | 0-000-1 |
| Carton Quantity Description | STD PACK QTY 48 |
|---|---|
| UPC Code | 78366960616 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | #10 |
|---|
Color
| Color | Copper |
|---|
