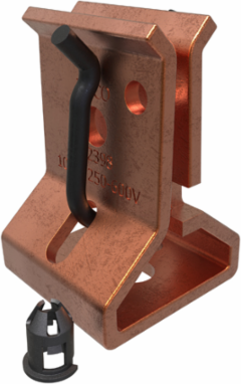

ILSCO M-2398 Copper Fuse Clip, Class R Wire Reinforced, 250 to 600 V, 100 Amps
- MPN: M-2398
- UPC: 783669613100
- PPN: ILC-M-2398
- UNSPSC: 39121630
CAD
$18.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ILSCO Fuse Clip, Clip connection, Copper material, Tin plated connector,for use with Ilscon Connector Type R, rated for 250-600 V, primary color Copper, 100 Amps rating,
Documentation & Downloads
Specifications
Key Specifications
| UPC Code | 78366961310 |
|---|---|
| Length (IN) | 0.906 |
| Width (IN) | 0.874 |
| Height (IN) | 1.359 |
| Weight (LB) | 0.13 |
| Dimension G (mm) | 11.0998 |
| Mounting Hole Diameter (mm) | 6.7056 |
| Thickness (mm) | 1.9812 |
| Connector Finish | Tin |
| Voltage Rating | 250-600 V |
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| For Use With | Ilscon Connector Type R |
| Mounting Hole Type | Thru |
| Bag Quantity | 1 |
| UNSPSC Code | 39121630 |
|---|---|
| Length (mm) | 23.0124 |
| Width (mm) | 22.1996 |
| Height (mm) | 34.5186 |
| Dimension G (IN) | 0.437 |
| Mounting Hole Diameter (IN) | 0.264 |
| Thickness (IN) | 0.078 |
| Material | Copper |
| Color | Copper |
| UL File Number | E58652 |
| Connection | Clip |
| Fuse Type | Knife |
| Connector Amperage Rating CU (Derated where applicable) | 100 Amps |
