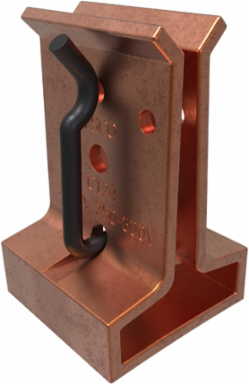

ILSCO M-233 Copper Fuse Clip, Wire Reinforced, 250 to 600 Volts, 200 Amps
- MPN: M-233
- UPC: 783669611687
- PPN: ILC-M-233
- UNSPSC: 39121630
CAD
$92.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ILSCO Fuse Clip, Clip connection, Copper material, Tin plated connector,mounting bolt/stud size 5/16 in, rated for 250-600 V, primary color Copper, 200 Amps rating,
Documentation & Downloads
Specifications
Key Specifications
| UPC Code | 78366961168 |
|---|---|
| Mounting Bolt/Stud Size | 5/16/2020 |
| Length (mm) | 31.4452 |
| Width (mm) | 31.75 |
| Height (mm) | 50.8762 |
| Dimension G (IN) | 0.625 |
| Mounting Hole Diameter (IN) | 0.344 |
| Thickness (IN) | 0.098 |
| Material | Copper |
| Color | Copper |
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| Fuse Type | Knife |
| Connector Amperage Rating CU (Derated where applicable) | 200 Amps |
| UNSPSC Code | 39121630 |
|---|---|
| Length (IN) | 1.238 |
| Width (IN) | 1.25 |
| Height (IN) | 2.003 |
| Weight (LB) | 0.324 |
| Dimension G (mm) | 15.875 |
| Mounting Hole Diameter (mm) | 8.7376 |
| Thickness (mm) | 2.4892 |
| Connector Finish | Tin |
| Voltage Rating | 250-600 V |
| Connection | Clip |
| Mounting Hole Type | Thru |
| Bag Quantity | 1 |
