Ilsco

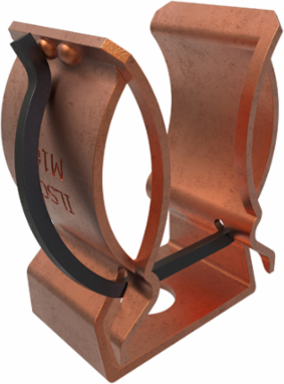

Ilsco M-164 Copper Fuse Clip, Wire Reinforced, 600 Volts, 60 Amps

Copper Fuse Clip, Wire Reinforced, 600 Volts, 60 Amps
  • MPN: M-164
  • UPC: 0783669607635
  • PPN: ILC-M-164

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$7.35/ EA

Specifications

Voltage

Voltage Rating
600 V

Dimensions

Dimension G (IN)
0.312
Height BX (IN)
2.25
Length (mm)
33.9852
Mounting Hole Diameter (IN)
0.281
Thickness (IN)
0.04
Weight BX (LB)
1.9
Width (mm)
18.2626
Dimension G (mm)7.9248
Height (mm)35.6362
Mounting Bolt/Stud Size (mm)203.2
Mounting Hole Diameter (mm)7.1374
Thickness (mm)1.016
Width BX (IN)5

Testing Standards

Prop65 Compliance
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

Additional Class Attributes

Connection
Clip
Mounting Hole Type
Thru
Fuse TypeFerrule

Material and Finish

Connector Finish
Tin
MaterialCopper

Additional Technical Specifications

Connector Amperage Rating CU (Derated where applicable)
60 Amps

General

Bag Quantity
1
NEMA Code
0-000-1
Carton Quantity DescriptionSTD PACK QTY 24
UPC Code78366960763

Specifications

Height
1.403 in | 35.6362 mm
Weight
0.041 lbs
Length1.338 in | 33.9852 mm
Width0.719 in | 18.2626 mm

Bolt and Screw Sizes

Mounting Bolt/Stud Size
#8

Color

Color
Copper
