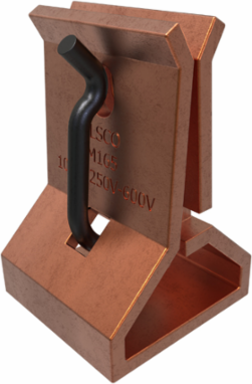

ILSCO M-165 Copper Fuse Clip, Wire Reinforced, 250 to 600 Volts, 100 Amps
- MPN: M-165
- UPC: 783669608274
- PPN: ILC-M-165
CAD
$13.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Fuse Clip, Wire Reinforced, 250 to 600 Volts, 100 Amps
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.398 in | 35.5092 mm |
|---|---|
| Weight | 0.072 lbs |
| Length | 0.906 in | 23.0124 mm |
|---|---|
| Width | 0.874 in | 22.1996 mm |
Voltage
| Voltage Rating | 250-600 V |
|---|
Dimensions
| Dimension G (IN) | 0.437 |
|---|---|
| Height BX (IN) | 2.25 |
| Length (mm) | 23.0124 |
| Mounting Hole Diameter (mm) | 6.7564 |
| Thickness (mm) | 1.9812 |
| Width BX (IN) | 5 |
| Dimension G (mm) | 11.0998 |
|---|---|
| Height (mm) | 35.5092 |
| Mounting Hole Diameter (IN) | 0.266 |
| Thickness (IN) | 0.078 |
| Weight BX (LB) | 1.9 |
| Width (mm) | 22.1996 |
Testing Standards
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
|---|
Additional Class Attributes
| Connection | Clip |
|---|---|
| Mounting Hole Type | Thru |
| Fuse Type | Knife |
|---|
Material and Finish
| Connector Finish | Tin |
|---|
| Material | Copper |
|---|
Additional Technical Specifications
| Connector Amperage Rating CU (Derated where applicable) | 100 Amps |
|---|
General
| Bag Quantity | 1 |
|---|---|
| NEMA Code | 0-000-1 |
| Carton Quantity Description | STD PACK QTY 12 |
|---|---|
| UPC Code | 78366960827 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 1/4 |
|---|
Color
| Color | Copper |
|---|
