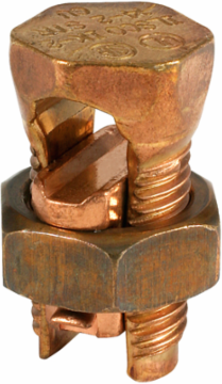

ILSCO IK-2 Copper Split Bolt, Conductor Range for Equal Main & Tap 2-6 Sol, UL, CSA
- MPN: IK-2
- UPC: 783669470109
- PPN: ILC-IK-2N
CAD
$14.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Split Bolt, Conductor Range for Equal Main & Tap 2-6 Sol, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.81 in
- Weight
- 0.106 lbs
Length1.32 in
Width0.94 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 11/16, 13/16
- Height BX (IN)
- 2
- Width BX (IN)
- 6.1875
Drive Type MainExternal Hex
Weight BX (LB)6.237
Wire Diameter Range Primary (IN)0.162 - 0.292
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed, UL 467 Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
MaterialCopper
Conductor Ranges
- Conductor Range for Equal Run & Tap Str
- 2 Str - 5 Str
- Conductor Range for Minimum Tap with Maximum Run
- 14 Str
- Max Conductor Copperweld - Type A
- 3A
Conductor Range for Equal Run & Tap Sol2 Sol - 6 Sol
Max Conductor Copperweld - Str3 No. 7
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedNo
UPC Code78366947010
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque275
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
