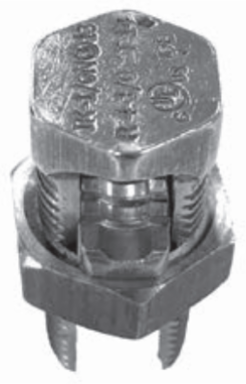

ILSCO IK-4 Copper Split Bolt, Conductor Range for Equal Main & Tap 4 Sol - 8 Sol, UL, CSA
- MPN: IK-4
- UPC: 783669470062
- PPN: ILC-IK-4N
CAD
$10.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Split Bolt, Conductor Range for Equal Main & Tap 4 Sol - 8 Sol, UL, CSA
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 35 kV or less
- Temperature Rating
- 90 C
- Connection
- Mechanical
- Conductor Type
- Solid, Stranded
- Length
- 1.05 in
- Height
- 0.69 in
- Drive Type
- External Hex
- CSA Standard
- C22.2 No. 188, C22.2 No. 65
- UL Specification
- UL 467, UL 486A/B
- UL File Number
- E6207
- Direct Burial
- Yes
- Weight
- 0.067 lbs
Torque165 in-lb
Conductor Range4 Sol - 8 Sol
Number of Conductors1
MaterialCopper
Width0.79 in
Drive Size9/16, 11/16
Number of Wire Binding Screws per Port1
CSA File NumberLR-701570
UL Control Number460C
NEMA CodeS-588-4
ColorCopper
